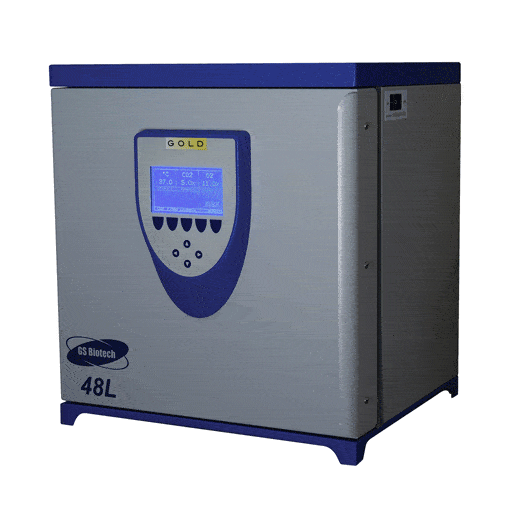

48L Gold Co2 Cell Culture Incubator
48L Gold Co2 Cell/ Tissue culture incubator manufactured by GSBiotech
Features
- Optimum chamber environment, profiled heating creates gentle circulation –no fan or HEPA filter.
- Seamless chamber, with rounded interior corners makes cleaning easy.
- Removable shelves are non-tip.
- Sealed inner glass door allows chamber viewing.
- Temperature range programmable from 4 °C above ambient to 50 °C.
- Infrared CO2 Sensor, with auto self-referencing function.
- CO2 range programmable from 0.2 to 20 %.
- Large, easy to read LCD display with LED backlight.
- Removable, seamless, stainless steel humidity reservoir.
- 25mm access port for cable pass-through etc.
- HEPA filtration for all incoming gasses.
- Large range of options allows you to configure each incubator for each task.
- Optional data capture and reporting for QA and verification purposes.
- 3 Year Warranty (extendable).
Control System Safety Features Include:
- Independent over temperature cut-out.
- Calibration and programmed data internally backed up to guard against loss.
| Features | 48L Gold |
| 170L SEAMLESS CHAMBER WITH FULLY ROUNDED CORNERS | · |
| DRY WALLED CHAMBER WITH NO CONDENSATE SPOT | · |
| INFRARED HERMETICALLY SEALED CO2 SENSOR | · |
| CO2 AUTO REFERENCE SYSTEM | · |
| SEALED INNER GLASS DOOR | · |
| LARGE LCD DISPLAY WITH LED BACKLIGHT | · |
| 25mm ACCESS PORT WITH SEALING PLUGS | · |
| RS232 OUTPUT SOCKET | · |
| ON BOARD DATALOGGER | · |
| HIGH TEMPERATURE DECONTAMINATION | * |
| 4 INNER DOOR OPTION | * |
| O2 CONTROL (1-19% OR 0.1-19%) | * |
| HUMIDITY TRAY WARNING | * |
| COOLING SYSTEM | * |
| Options | 48L Gold |
| 230V 50/60Hz | 48G-230 |
| 110v 50/60Hz | 48G-110 |
| HIGH TEMPERATURE DECONTAMINATION | 48G-014 |
| 4 INNER DOOR OPTION | 48G-022 |
| O2 CONTROL 1-19% | 48G-011 |
| O2 CONTROL 0.1-19% | 48G-031 |
| RS232 OUTPUT SOCKET | · |
| HUMIDITY TRAY WARNING | 48G-018 |
- Standard Equipment *Option available X Option not available
| Accessories | Order code |
| CO2 CYLINDER AUTO CHANGEOVER UNIT | GSB-5000 |
| CO2 TWO STAGE REGULATOR | GSB-5010 |
| IN LINE PRESSURE REGULATOR | GSB-5030 |
| CO2 SUPPLY LINE FILTERS (2OFF) | GSB-5020 |
| CO2 AUTO REFERENCE FILTER | GSB-5060 |
| HUMIDITY TRAY | GSB-5940 |
| CO2 ELECTRONIC ANALYSER | GSB-6150 |
| CO2 /O2ELECTRONIC ANALYSER | GSB-6831 |
| STACKING KIT | GSB-1160 |
Technical Specifications
| TEMPERATURE MANAGEMENT | CO2 CONTROL | ||
| RANGE: | 4°C ABOVE AMBIENT TO 50°C | RANGE: | 0.2 – 20% |
| CONTROL: | ± 0.1°C | CONTROL: | ± 0.1°C |
| STABILITY: | ± 0.1°C | STABILITY: | ± 0.2°C |
| UNIFORMITY | ± 0.3°C | UNIFORMITY: | ± 0.1°C |
| RECOVERY RATE: | > 0.7% PER MINUTE | ||
| CONNECTION: | 6mm TUBING | ||
| RELATIVE HUMIDITY | GAS PRESSURE: | 0.35BAR (5PSI) | |
| TRAY CAPACITY: | 0.5 LITRES | ||
| HUMIDITY: | UP TO 95% @ 37°C | ||
| DIMENSIONS | CHAMBER: | 400(W) X 301(D) X 400(H)mm | |
| SHELVES | EXTERNAL: | 529(W) X 442(D) X 589(H)mm | |
| SOLID SHELVES: | 3 SHELVES | CRATED: | 654(W) X 617(D) X 824(H)mm |
| DIMENSIONS: | 378(W) X 281(D)mm | ||
| UNIT WEIGHT: | 38KG | ||
| CRATED WEIGHT: | 60KG | ||
| ELECTRICAL SUPPLY | |||
| VOLTAGE: | 100/120V OR 220/240V | ||
| 50/60 Hz | |||
| POWER: | 500W(STD) / 1000W(HT) | ||
| HOLD ENERGY: | < 0.1kWh @ 37°C | ||
