Automate low-throughput sample preparation within your laboratory workflow using Magnetic Particle Processors: Auto-Pure32 Nucleic Acid Purification System. It for processing volumes up to 1ml, With the ability to go down to 50ul to release target molecules, samples such as DNA or RNA can isolated and concentrated from larger starting volumes at the same time.
The Auto-Pure32 comes with a 96 deepwell plate for necleic acid purification of up to 32 processed samples per run.

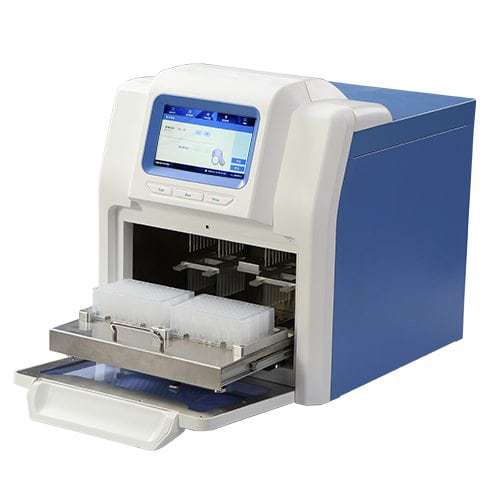

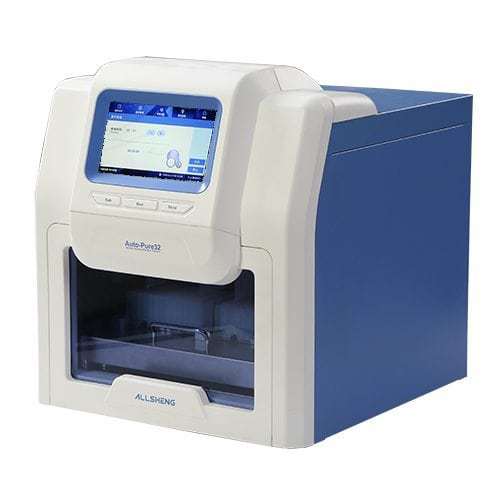

Auto-Pure20 / Auto-Pure32 is a bench top device for DNA and RNA purification by using magnetic separation technology from different
starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using
magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with
minimized hands-on time. The DNA and RNA purification is of high quality and high molecular weight.
Magnetic Bead Extraction:
Code Description
AS-17020-00 Auto-Pure32 Nucleic Acid Purification System; AC120V/240V;50/60Hz
1. It is easy to use with 7 inch touch screen
2. Very simple operation (easy to install, operate, maintain) without computer
3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample type
and method
4. Universal built-in program for easy using
5. High purity and excellent yield of nucleic acid
6. UV lamp to avoid cross contamination
7. 3 shortcut key to make for easy running, stopping the magnetic beads program
8. Open system can optimize purification proposal according to various magnetic
beads kits
9. Drawer design to prevent possible injuries
10. With special plastic consumables to avoid cross contamination
11. Improves workflow, and allows staff to perform other value-added tasks
12. Ensures impurities are removed; improved sample quality leads to better
downstream analyses
13. Capable of extracting 1~20 samples or 1~32samples per run
14. Alarm for indicating the completion of purification
15. Pause function for emergent stop
| Type | Auto-Pure32 |
| Throughput | 1~32 |
| Sample volume | 20~1000ul |
| Collection efficiency of the magnetic particles | >95% |
| Magnetic rod number | 32 |
| Plate types | 96 Deepwell plate |
| Extraction steps | Lysis, Sample binding, Washing and elution |
| Purification accuracy | 100 copy sample positive rate >95% |
| Heating Temperature | For cell lysis: Ambient temperature ~90? |
| For nucleic acid elution | Ambient temperature ~90? |
| Operation | 7 inch color touch screen |
| Storage Capacity | more than 100 programs |
| Protocol Management | Create, edit , delete, protocol mode |
| Pollution Control | UV light |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | AC110/220V, 50/60Hz |
| Dimensions | Dimensions |
| Weight | 23kg |
