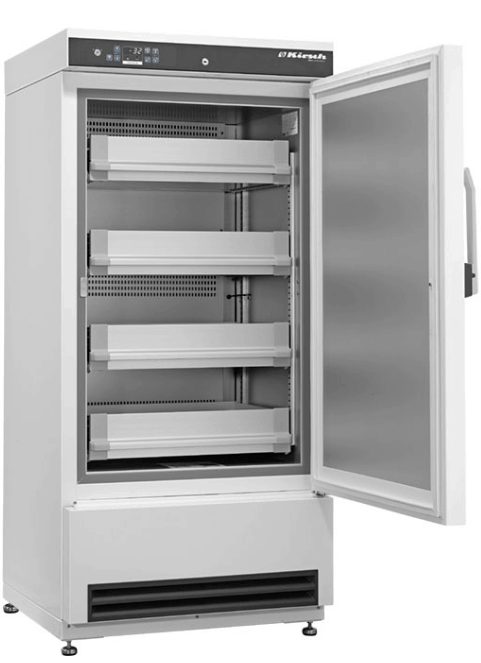

Blood Plasma Freezer FROSTER BL 330
The Blood Plasma Freezer FROSTER BL 330 is part of the KIRSCH Blood Plasma Freezers range it is fitted with an automatic rapid defrosting system. The Blood Plasma Freezer FROSTER BL 330 has 4 vertically adjustable drawers made of aluminium which rest on telescopic runners. Drawers made of stainless steel are optionally available. Dividers can be supplied for neatly and clearly arranged storage of the goods for both types of drawers. The defrosting process is monitored and temporarily limited. This prevents freezing of the interior and the temperature of the appliance’s contents is being kept constant in accordance with applicable regulations.
- 4 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission.
Features:
- External housing made from galvanised sheet steel (rustproof), with white, anti-scratch powder coating.
- Length of the plug cable: approx. 3.0 m. n Adjustable feet positioned at the front to compensate uneven floors.
- Interior made from smooth aluminium with colourless protective coating.
- Interior consists of five plastic-coated-shelves on overlays. Gibs every 15 mm.
- Extra-thick 70-mm insulation, made from high-quality, compression-moulded and environmentally friendly material.
- Energy saving.
- Self-closing door with easy-to-replace plastic magnetic seal frame, lockable.
- Door stop on the right-hand side (by default, see illustration), or the left-hand side, can be retrofitted.
- Forced-air cooling switches off automatically when you open the door, ensures a uniform temperature and minimizes temperature deviations.
- Digital display.
- Automatic defrosting with time limit and temperature monitoring. n Condensate evaporation in stainless-steel heated dish beneath the refrigeration floor.
- Warning functions with visual and audible alarm signal in the case of temperature deviation. Door open alarm after 60 seconds.
- Alarms can be forwarded using the potential-free contact.
- Ventilation-enforced refrigerating machine, vibration free, hermetically sealed, energy saving, low noise, easy to service.
Technical Specifications:
| Capacity | 300 l |
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumption | 490 Watts |
| Normal consumption | 6,85 KW / 24 h |
| Overall dimensions incl. distance from wall | 74 x 78 x 159 (w x d x h in cm) |
| Interior dimensions | 59 x 52 x 95 (w x d x h in cm) |
| Usable dimensions | 57 x 42 x 82 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 74 x 142 (w x d in cm) |
| Drawer inner dimensions | 54 x 37 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 124 kg / 139 kg (net / gross) |
Optional Equipment
- Castors
- Additional drawer made of aluminium
- Length and cross dividers
- Drawer made of stainless steel instead of aluminium
- Drawer insert/dividers for stainless steel drawer
- Shelf 52 x 42 cm with mounting brackets or rails
- Baskets with rails 56 x 40 x 10 cm
- GSM-Module
- PC-KIT-NET (Network capable version), PC-KIT-STICK or
PC-KIT-USB-MONITORING incl. documentation software - Pen-Recording thermometer for placing loosely inside appliance with waxed paper strips
- Disc-type pen recording thermometer with 7-day measuring cycle with 100 recording discs and 5 felt tip pens
- Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
