Bugbox M

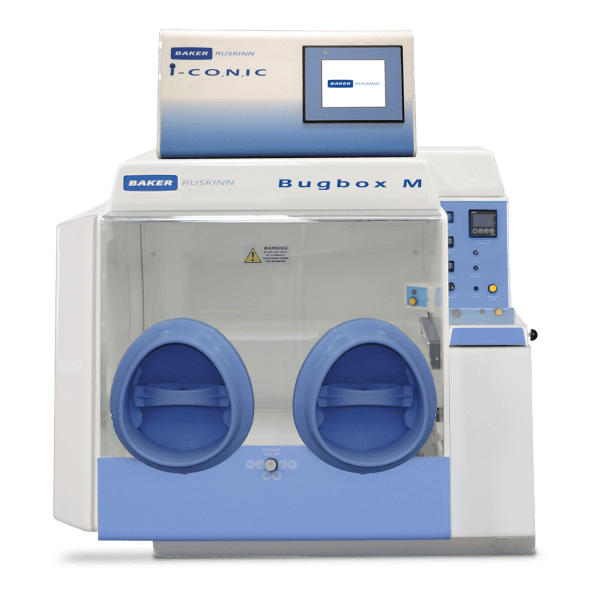

Bugbox M

The Bugbox M (microaerophilic) workstation is designed specifically to help microbiologists cope with rising workloads and provide the best primary isolation rates. The Bugbox M reads plates easily without exposing them to oxygen. With quick and easy access via the Ezee Sleeve™ gloveless port system and energy-saving lighting that provides perfect illumination, the Bugbox M is easy to use. Its compact size meets the needs of even the smallest laboratory spaces. Adjustable temperature and humidity provides a precisely controlled environment that is optimal for cell growth, with no dry spots. When adding the ICONIC Gas Mixing System option, which provides accurate and stable control over ₂ and C₂, you have the most convenient system for incubation of microaerophilics available. Compared wth anaerobic jars, Bugbox is economical with a lower cost per plate, and more reliable, providing a stable atmosphere.

Versatile and flexible to fit your workload

Multiple models and a variety of options are available to fit your specific needs.

BUGBOX M

Standard Features

• Detox advanced carbon filtration system
• Ezee Sleeve™ direct hand entry system
• Energy saving fluorescent illumination
• Inspection spot lamp
• Low gas alarm
• Automatic humidity control
• Palladium catalyst
• Anaerobic indicator strips
• Petri dish holders

Options & Accessories

•  Vacuum line port
• Gas sample port
• Cable gland port
• Internal electrical outlet
• Gas tank regulators and filter modules
• Workstation stand
• External docking facility for anaerobic jars
• Power failure back-up system
• Data logging connection
• Single Plate Entry System (SPES)
• For faculative and microaerophiles Bugbox-M allows user defined control of ₂ and C₂

Versatile and flexible to fit your workload

Multiple models and a variety of options are available to fit your specific needs.

Bugbox – your personal workstation

•  Up to 270 90mm plate capacity
•  Interlock transfer – 10 plates in 15 seconds



ICONIC™ allows:

• ₂ from 0.0% to 23.0% in 0.1% increments
• C₂ control from 0.1% to 30.0% in 0.1% increments
• ₂ sensor calibration with one touch
• Microaerophilic cycling, facilitating up to 4 different ₂ and C₂ concentrations through a user-defined sequence of time
• For faculative and microaerophiles
• User defined cintrol of ₂ featuring ICONIC™ from Baker Ruskin

BUGBOX M specification Summary

External Dimensions

• Width 800mm
• Depth 660mm
• Height 650mm

Internal Dimensions

• Width 500mm
• Depth 460mm
• Height 420mm

Maximum Capicity

• 90mm Plates – 270

Working Capicity

• 90mm Plates – 200

Interlock Dimensions

• Width 100mm
• Depth 100mm
• Height 200mm

Interlock Capicity

• 90mm Plates – 10

Weight

• 143lbs

Petri Dish Holders (Standard)

• 3
