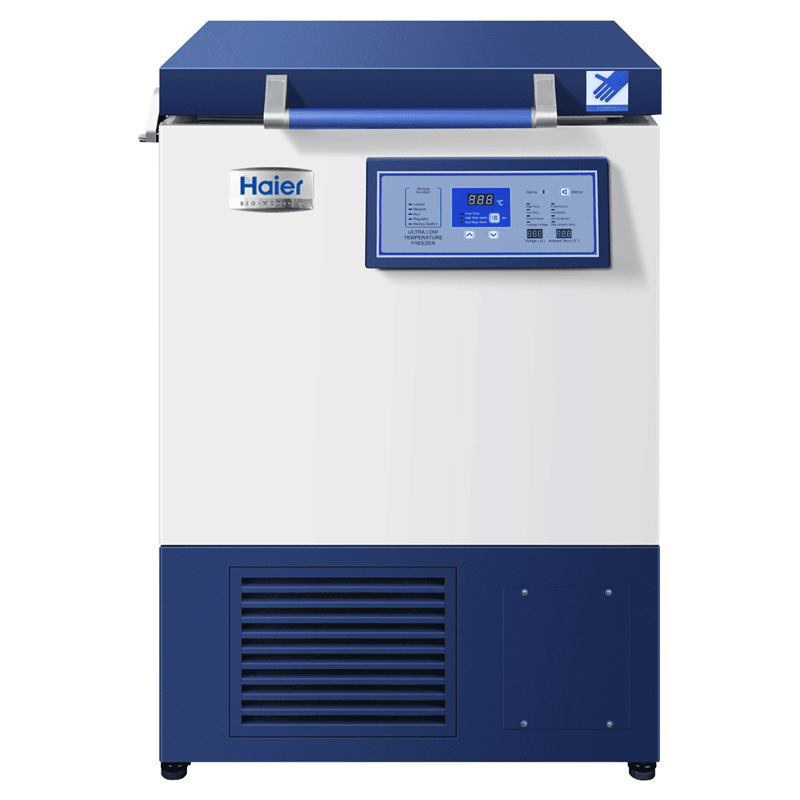

DW-86W100J low energy ULT chest freezer -86C
Features
Low Noise
Innovative refrigeration cabin design reduces operational noise
Reliable Performance
Cabinet temperature can reach -86℃ with temp uniformity within 5℃
Energy Saving
VIP (Vacuum Insulation Panel) design with extra insulation cuts down heat loss to cabinet by 25%
Optimal Design of Refrigeration System
Creat Comfortable Operation Environment World-leading refrigeration cabin design to reduce operation noise.
Small Footprint
Compact Chest Design Space-saving, easy for installation.
Large Loading Capacity
Small Footprint, Large Capacity Optimized space to hold more freezer boxes(72ea 2″ boxes).
Modular Design For Refrigeration system And Electrical Control System
Strong Cooling Capability And Reliable Performance Cabinet temperature can reach -86℃ with temp uniformity within 4℃.
Additional information
| Product | -86℃ ULT Freeer |
|---|---|
| Cabinet Type | Chest |
| Climate Class | N |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HFC |
| Cooling performance(℃) | -86 |
| Temperature Range(℃) | -40~-86 |
| Controller | Microprocessor |
| Display | LED |
| Power Supply(V/Hz) | 115/60, 220-240/50 |
| Power(W) | 650 |
| Electrical Current(A) | 12, 7.5 |
| Capacity(L/Cu.Ft) | 100/3.5 |
| Net/Gross Weight(approx) | 138/160(kg) 304.2/352.7(lbs) |
| Interior Dimensions(W*D*H) | 470*450*480(mm) 18.5*17.7*18.9(in) |
| Exterior Dimensions(W*D*H) | 769*825*1120(mm) 30.3*32.5*44.1(in) |
| Packing Dimensions(W*D*H) | 834*854*1235(mm) 32.9*33.9*48.6(in) |
| Container load (20’/40’/40’H) | 12/24/48 |
| High/Low Temperature | Y |
| Remote Alarm | Y |
| Hot Condenser | Y |
| Power Failure | Y |
| High/Low Voltage | Y |
| Sensor Error | Y |
| Low Battery | Y |
| High Ambient Temp | Y |
| Door Ajar | N/A |
| Caster | Y |
| Foot | Y |
| Test Hole | Y |
| Shelves/Inner Doors | -/1 |
| USB Interface | Y |
| Rs232/485 Interface | Optional |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Racks & Boxes | Optional |
