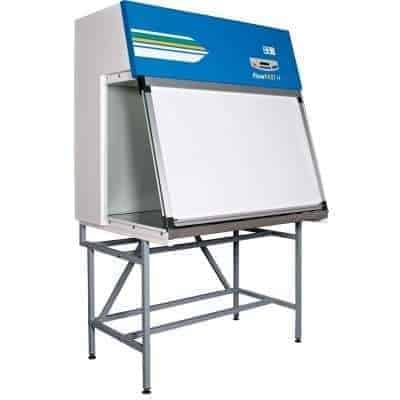

FlowFAST H 09
Technical sheet
Useful dimension (mm):: WxDxH: 885x600x734
Overall dimension [mm]: WxDxH: 945x925x1195
Noise level (dbA):Working Aperture (mm): 735
Lighting level (lux): >800
Weight (kg): 95
Electrical data [230V – 50H] (**): 230 V – 50 Hz
(**) different voltage/frequency available upon request:
Accessories
FX0000194600 – UV lamp on FFH 09, factory fitted with PVC shutter to close the front opening
FX0000194580 – PVC shutter for front aperture of FlowFAST H 09
FX0000194500 – Epoxy powder coated modular stand for FlowFAST H 09
FX0000194510 – Epoxy powder coated modular stand for FlowFAST H 09 with castors
FX0000204900 – Additional electrical socket
FX0011247000 – Gas Tap with electrovalve
FX0000204710 – Manual Gas Tap
FX0011247100 – Manual Vacuum Tap
FX0011247200 – Manual Compressed air Tap
FX0011247300 – Manual Nitrogen Tap
FX0011247400 – Manual Water tap
FX0000204980 – Automatic regulator with full digital display and anemometer for FFH 09/12
FX0012150000 – Digital Display (including only UV Timer and Hour Counter)
FX0000204990 – Differential pressure gauge Minihelic
FX0000194210 – Stainless steel bar for bags with 6 hooks to be fitted on FlowFAST H 09
FX0000064810 – 3-drawers unit on pivotting castors and removable epoxy powder coated vessels
