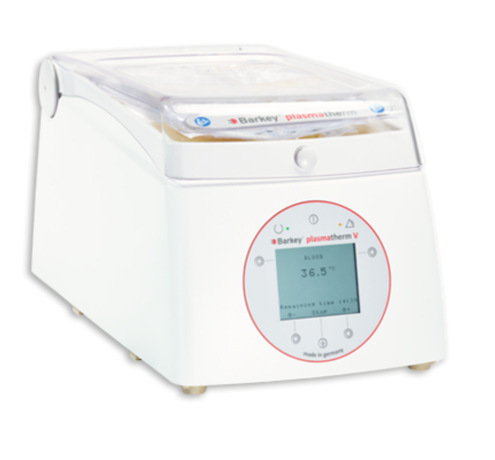

The Barkey plasmatherm V is designed for simple and intuitive handling and offers additional operating features. For example, menu navigation in the national language, short-cut programs, and optional documentation software is available.
The short-cut programs for blood, plasma, octaplas, and user can be customized in terms of time and temperature (if compliant with applicable and national transfusion guidelines). The Barkey plasmatherm V can be used in a temperature range between +37°C and +45°C (in the USA only up to +37°C).
The cleaning effort for the user is also minimal. Thus, a water change of the Barkey plasmatherm V is only required once a year. Regular wipe disinfection of the temperature control chamber is recommended.
The Barkey plasmatherm V offers the possibility of electronic documentation of the heating or thawing process. The Barkey TCP Logging Tool can be used to document barcodes, user of the device, temperature control time and temperature of the executed program, etc.
To make optimum use of the Barkey plasmatherm V, up to four bags are placed on the paddle and between two temperature control cushions filled with water. Here, the water is pumped into the temperature control cushions and circulates there continuously. This dry-tempering process guarantees constant temperatures with minimal fluctuations that comply with the applicable guidelines for blood and blood products.
Product safety in accordance with hygiene guidelines is ensured, as the bags are not in direct contact with the heating medium water (dry tempering). The temperature control cushions offer the advantage of ideal conformity to the shape of the products. Integrated moisture sensors detect leaks at an early stage and alert the user to possible deviations by means of visual and acoustic signals. The visual inspection of the bags through a transparent lid unit enables the monitoring of sensitive blood and blood products. The safety of the preparation and its biological value are permanently ensured by a preset temperature limit.
The user can choose between 5 preset programs for blood, plasma (FFP), Octaplas, and a special user program (US version different).
The Barkey plasmatherm V also stands for sustainability. The product does not require any additional consumables. In accordance with the latest quality standards, the Barkey plasmatherm V is manufactured according to ISO 13485 standard. The Barkey plasmatherm V is also approved by the FDA.
|Product||Barkey plasmatherm V|
|Power supply||220-240 V 50/60 Hz or|
100-120 V 50/60 Hz
|Set temperature||+37°C to max. +45°C; US: +37°C|
|Dimensions||340 x 600 x 320 mm (WxDxH)|
|Weight without filling||18 kg|
|Filling quantity||9 l|
|Documentation software||Barkey TCP Logging Tool|
|Certifications||CE 0123; DIN EN ISO 13485|
