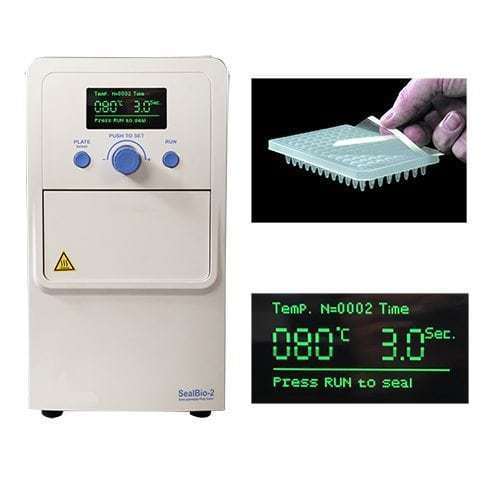

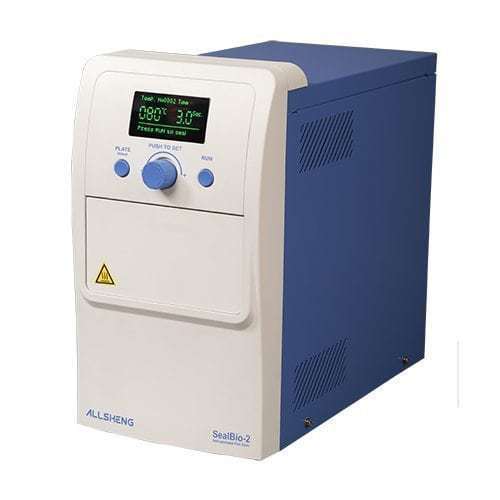

The SealBio-2 Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniformand consistent sealing of micro-plates.
1. With a small footprint (178×370mm), takes up less precious bench space than comparable instruments
2. Available with a variety of available heat seals meet any laboratory application, including PCR, coulorimetric, fluorescence, long term storage, low emperature storage
3. Formart different micro well plates and heat seals.
SealBio-2 Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniformand consistent sealing of micro-plates. Unlike manual plate sealer , the SealBio-2 produces repeatable plate seals. With variable temperatureand time settings, sealing conditions are easily optimised to guarantee consistent result, eliminating sample loss. The SealBio-2 can be applied in product’s quality control of many manufacture enterprise such as plastic film, food, medical, inspection institute, scholastic scientific research and teaching experiment. Offering complete versatility, the SealBio-2 will accept a full range of plates for PCR, assay or storage applications.
Code Description
AS-15020-00 SealBio-2 AC220V or AC120V, 50/60Hz, 300W
1. Format different micro well plates and heat seals
2. Adjustable Sealing Temperature: 80 – 200°C
3. OLED display screen, high light and no visual angle limit
4. Precise temperature, timing and pressure for consistent sealing
5. Automatic counting function
6. Plate adapters allow use of virtually any ANSI microplate or PCR plate
7. Motorized drawer and motorized sealing platen guarantee consistent
good results
8. Compact footprint: only 178mm wide x 370mm depth
9. Power requirments: AC120V or AC220V
|
Model
|
SealBio-2
|
|
Display
|
OLED
|
|
Sealing temperature
|
80 ~ 200? (increment of 1.0 ?)
|
|
Temperature accuracy
|
±1°C
|
|
Temperature uniformity
|
±1°C
|
|
Sealing time
|
0.5 ~ 10 seconds (increment of 0.1s)
|
|
Seal plate heights
|
9 to 48mm
|
|
Input Power
|
300W
|
|
Dimension (D x W x H)mm
|
370?178?330
|
|
Weight
|
9.6kg
|
|
Compatible Plate Materials
|
PP (Polypropylene)
PS (Polystyrene)
PE (Polyethylene)
|
|
Compatible plate types
|
SBS Standard plates, Deep-well plates
PCR plates (Skirted, semi-skirted and no-skirted formats)
|
|
Heating Sealing Films & Foils
|
Foil-polyproylene laminate
Clear polyester-polypropylene laminate
Clear polymer
Thin clear polymer
|
