The Spectra Light Capsules are powerful fluorescence exciters with focused light for uniform illumination and enhanced power. Equipped with primary and secondary optics, the Light Capsules are categorized as Laser Class II due to their intense power.
Code | Description |
3999 7010 1 | SPECTRA-Capsule-DEEP-IR-780nm |
3999 7011 1 | SPECTRA-Capsule-IR-740nm |
3999 7012 1 | SPECTRA-Capsule-NIR-680nm |
3999 7013 1 | SPECTRA-Capsule-NIR-640nm |
3999 7014 1 | SPECTRA-Capsule-Green-530nm |
3999 7015 1 | SPECTRA-Capsule-Blue-480nm |
3999 7017 1 | SPECTRA-Capsule-DEEP-Blue-440nm |
3999 7016 1 | SPECTRA-Capsule-UV-365nm |

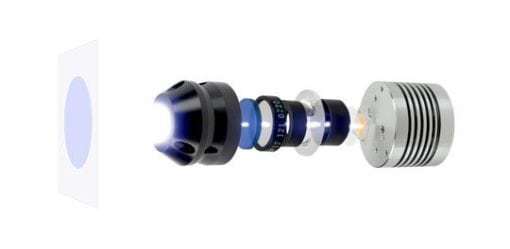

Narrow Bandpass filters
- Dual magnetron sputtering technology for the highest filter transmittance
Light Pass
- Collimate the light to reduce the angle of incidence for a better filter performance
Secondary Optics
- Uniform illumination
Primary Optics
- Focus the LED light
Pulsed LED
- AlGaInP, InGaN or AlGaAs medical grade light source
