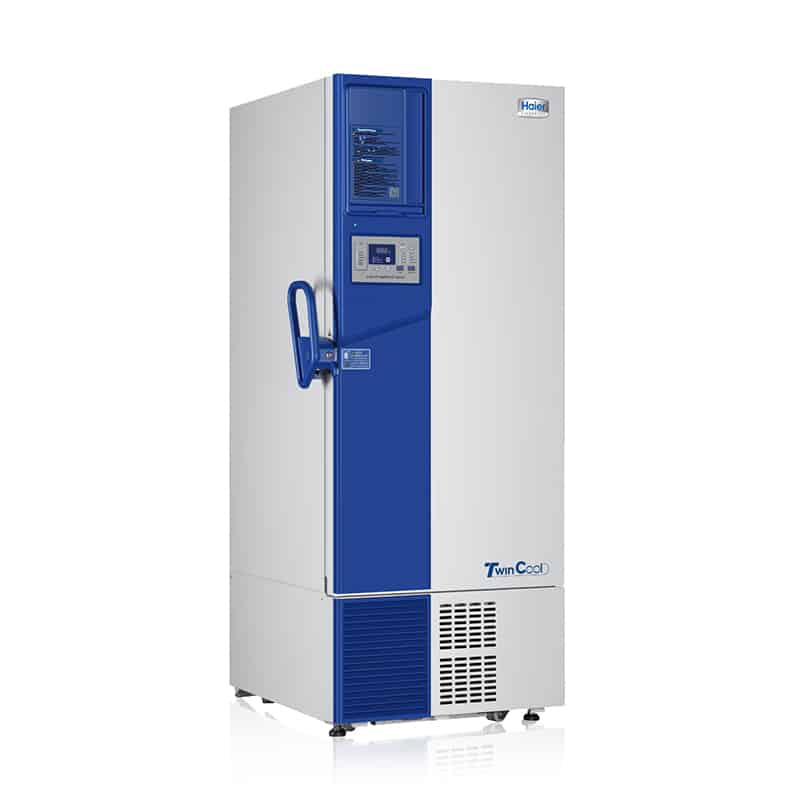

TwinCool DW-86L578S ULT freezer -86C
Features
Intelligent Dual System ULT Refrigeration
Two independent refrigeration systems designed to ensure optimal reliability, longevity and efficiency.
Maximum Energy Efficiency
50% more energy efficient than standard ULT refrigeration systems.
Fast Cabinet Pull Down
Takes only 3 hours to cool from +25C ambient to -80C.
Multilayers Sealing Structure
High-efficiency cooling fans and compressors combined with hydrocarbon refrigerants ensure energy savings and long term sample security
Triple of layer of gaskets split between main and inner doors decreases heat loss and guarantee’s excellent warm-up times in the event of a power failure
Pressure Equalisation Port
Heated port with spring-assisted mechanism to prevent icing on the vent allows users to reopen the main door soon after entering
Improved Handle Design
Lockable handle with unique key prevents other Haier freezer owners access to your precious samples, also comes with space for a padlock for that extra security
USB Interface
Enables users to download historical temperature data for compliance/auditing purposes
Multi Level Alarms
Alarming functions that include hi and low temperature, sensor error, power failure, high ambient, clean filter and door ajar
Additional information
| Product | DW-86L578S |
|---|---|
| Cabinet Type | Upright |
| Climate Class | N |
| Storage Capacity | 578/20.4(L/Cu.Ft) |
| Temperature Range(℃) | -40~-86 |
| Noise Level (db) | 53 |
| Net/Gross Weight | 325/355 |
| Exterior Dimensions(W*D*H) | 895*998*1980(mm) 35.2*39.3*78.0(in) |
| Interior Dimensions(W*D*H) | 620*716*1310(mm) 24.4*28.2*51.6(in) |
| Refrigerant | HC |
| Cooling performance(℃) | -86 |
| Display | LED |
| Power Supply(V/Hz) | 220~230/50 |
| Power(W) | 1400 |
| Power Consumption | 12Kw/h |
| Electrical Current(A) | 10 |
| Building Supply Rating (A) | 16 |
| Power Lead Length(m) | 2.5 |
| Heat Rejection (BTU/day) | 1706 |
| Ambient Temperature(°C) | 10~32°C |
| Cooling Type | Direct cooling |
| Compressor Type/Brand/Number | Hermetic Reciprocating Type / SECOP / 2 |
| Compressor Capacity(W) | 1300+1300 |
| Evaporator Type | Copper Tube Evaporator |
| Defrost Mode | Manual |
| Refrigerant Charge/Flammable | R600a+R1150+R14 Mix in 1st Stage / the same in 2nd Stage/Flammable |
| Controller Level | Top |
| Power Switch | 16A |
| Controller | Microprocessor |
| Setpoint Security | Yes |
| Controller Sensor | PT100 |
| Remote Alarm Terminals | Remote Alarm Port, RS232/RS485 (Optional) |
| Adjustable High/Low Temp Alarms | Y |
| Insulation | VIP+CFC Free Foaming Agent |
| Exterior Door Seal | Four Seal On The Outside Door Seal Strip |
| Interior Door Seal | One Seal On The Interior Door Seal Strip |
| Shelves/Capacity/Dims/Material | 3 stainless steel adjustable shelves with dimension 596*657 mm(W*D),-max capacity per shelf:40kg，88.2 lbs |
| Caster | Y/4 |
| Exterior Material | Color Coating Steel Plate |
| Interior Material | Color Coating Steel Plate |
| Door Thickness（mm） | 90 |
| Cabinet Thickness | 90 |
| Inner Door | Four Solid Door |
| Condenser Type | Fin Condenser |
| Fan Brand | EBM |
| Back Up Battery For Alarm Functions | Support high/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms |
| Temperature Uniformity(°C) | ±5 |
| Temperature Accuracy(°C) | 0.1 |
| Cool Down Time (25°C ambient to -80°C) mins | 180 |
| Warm Up Time (25°C ambient -80°C to -50°C) mins | 280 |
| 1 Min Door Open Recovery Time (ambient 25°C running temp -80°C)mins | 30 |
| Certificate | CE |
