The system serves to de-aerate encapsulated heating elements (products). Operating programs can be compiled and managed by means of a software (web visualization).
For each product a special program can be defined. A program consists of maximum 20 steps. One step comprises pressure, time, and status of the vibration table.
Operation of the system is done via touch screen.
Basic Equipment:

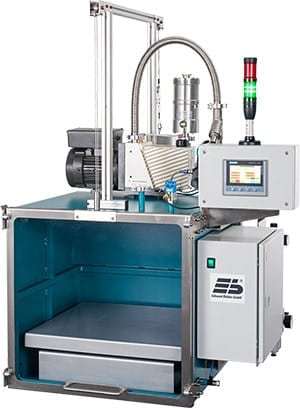

Vibration system consisting of chamber with built-in vibration table, control cabinet with integrated electronics, as well as signaling column, vacuum pump, valves, pressure sensor, and door mechanism.
Details
| Chamber volume: | approx. 350 l |
| Max. load: | 25 kg |
| Frequency of vibration table [min-1]: | 2.096 – 3.336 min-1 |
| Minimum pressure, absolute [mbar]: | 400 mbar |
| Maximum pressure, absolute [mbar]: | Ambient pressure (usually 960 – 1030 mbar), no overpressure above ambient pressure |
| Pressure range of vibration table: | 2 – 6 bar |
| Compressed air: | 5 bar (clean compressed air, filter 5µm) |
| Air consumption [l/min]: | 128 – 564 l/min |
Technical Specifications
| Electrical supply: | 230 V / 50 Hz (different voltage on request) |
| Power input: | 4.8 A |
| Fuse: | Automatic fuse set to 6 A |
| Ambient temperature: | 10°C – 40°C |
| Dimensions (w x d x h): | 960 x 800 x 1.300 mm |
| Weight: | approx. 200 kg |
