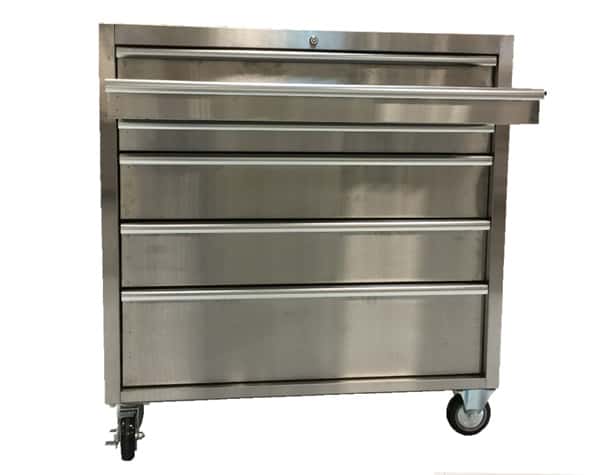

CA-INSTRUMENTAL DRAWER CUPBOARD

CA-INSTRUMENTAL DRAWER CUPBOARD

• AISI 304 stainless steel body and front drawers.
• Body of drawers in lacquered galvanized steel.
• Provided with 2 handles for handling.
• Completely removable drawers on guides with ball bearings, with individual locking to prevent them from opening involuntarily.
• Max load approx. 20 kg.
• Central locking with cylinder lock.
• 2 rotating polyurethane wheels and 2 fixed Ø 125 mm.

Technical data
Total width: 1.056 mm
Total height: 1.110 mm
Total depth: 470 mm
Number of drawers: 6 unid.
Drawers height: 3 x 83mm
2 x 170mm
1 x 257 mm
Body color: stainless steel
Drawers color: stainless steel
Drawers extraction: 100%
Max load per drawer: 20 kg
Drawer width: 947 mm
Drawers depth: 410 mm
Drawer guide: ball bearings guides
Wheels equipment: 2 swivel wheels with brake, 2 fixed wheels
Frame material: stainless steel
Type of locking: centralized locking by means of cylinder lock
Drawer model: with individual locking
Diameter of the wheels: 125 mm
Weight: 95 kg
