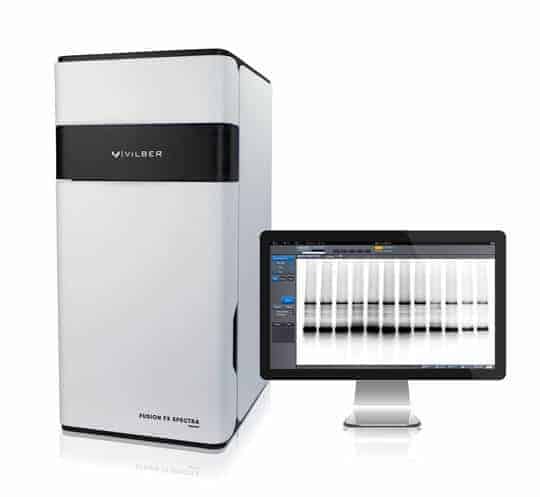

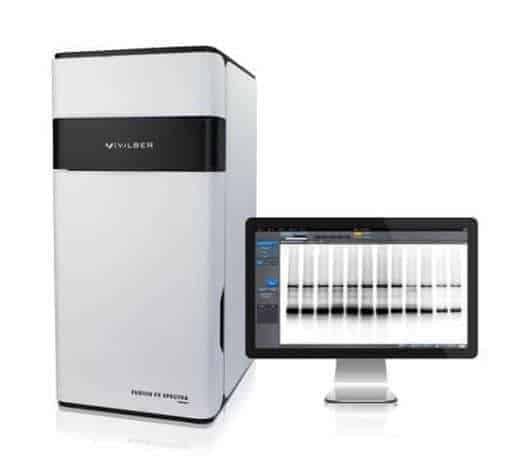

The Fusion FX Spectra is the first multimodal imaging platform designed for molecular biology laboratories. It covers chemiluminescence, bioluminescence, multiplexing fluorescence and chemifluorescence applications.
| Code | Description |
| 1511 1340 1 | FUSION FX7.EDGE/SPECTRA 7 CHANNELS |
| 1511 1310 1 | FUSION FX7.EDGE/SPECTRA Red Green Blue |
| 1511 1330 1 | FUSION FX7.EDGE/SPECTRA IR-NIR |
| 1511 1350 1 | FUSION FX7.EDGE/SPECTRA UV-365nm |
| 1511 9740 1 | FUSION FX6.EDGE/SPECTRA 7 CHANNELS |
| 1511 9710 1 | FUSION FX6.EDGE/SPECTRA Red Green Blue |
| 1511 9730 1 | FUSION FX6.EDGE/SPECTRA IR-NIR |
| 1511 9750 1 | FUSION FX6.EDGE/SPECTRA UV-365nm |
The Application Master
- 7 excitations channel options in the IR, NIR, visible RGB and UV area
- 10 Spectra narrow band filters available from 440 to 850nm
- 40 fluorescence and chemiluminescence predefined imaging protocols at your fingertips
Unique Technologies
- Spectral Unmixing for signal cross talk separation
- Clarity™ technology for razor sharp band revelation
- SuperResolution™ technology for ultimate megapixel resolution
- 3D Dynamic Scan technology
Unrivaled Performance
- Better sensitivity than a film
- Unique custom made V.084 lens performance for super-fast image acquisition
- Reproducible and comparable quantification data
- Best signal to noise ratio of the industry for the lowest limit of detection
Easy & Intuitive
- One-click-to-get-the-image
- Auto-exposure and auto-focus
- Automatic light illumination control
- Protocol driven image acquisition
The FUSION FX Spectra software has rich features and guides you into the advanced functions in a very ergonomically designed user interface. The simple and self-understandable menu is ideal in a multi-user environment.
Designed by molecular biologists the software is very easy to use: juts one click is necessary to get the optimum Western Blot image.
- UV Pad for DNA and RNA gels and fluorescence stain imaging:
Ethidium Bromide, Sybr-Safe, Sybr-Green, Gel-Red, Gel-Green, Sybr-Gold, GFP, Pro-Q Emerald, Sypro Ruby, FITC, DAPI…
- White Pad or white light conversion screen for colorimetric stained protein gels, X-Ray film, autorads, SSCP gels, colony dish and flask imaging and other EPI white light applications:
Coomassie Blue, Silver Stain, Ponceau S Red, Copper stain…
- Blue Pad or blue light conversion screen for DNA/RNA detection (avoid “nicking” DNA):
Sybr-Safe, Sybr-Green, eGFP…
