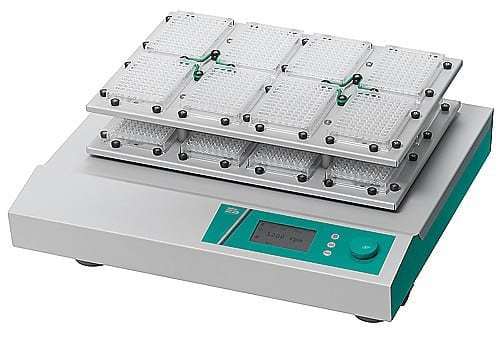

The Microplate Shaker TiMix 5 control guarantees optimal mixing of small sample volumes in microplates, deepweel-plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates. The shaker also has a digital display and programmable control.
Basic Equipment
Basic device without shaking plate, without rack system
With digital display and programmable control
Loading Capacity
Standard rack system 0052 101 8 microplates
Rack system with pins 0052 096 8 microplates
Standard rack system 0052 101 +
Additional tray 0052 102 16 microplates
RS high clamping pins 0052 104 24 microplates
RS metal clamping pins 0052 125 48 microplates
Option:
Control interface
USB interface
Defined stop
Details
| Motion: | exact orbital motion |
| Shaking platform: | 400 x 300 mm for 8 microplates |
| Max. load: | 5 kg |
| Shaking speed: | 100 – 1400 rpm, in steps of 5 |
| Stroke: | 3 mm (Special stroke on request) |
| Runtime: | programmable / continuous |
| Accessory: | Standard Rack System TiMix 5 Additional tray TiMix 5 Rack System with clamping pins Rack System with high clamping pins Rack System with metal clamping pins Rack System Combifix KS Universal tray KS Incubator Hood TH 15 |
Technical Specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 H please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 25 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 20 kg |
