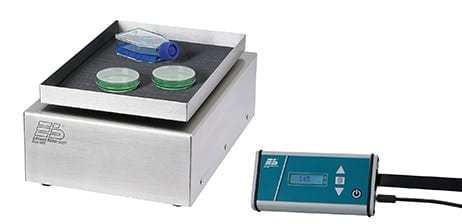

The shaker KM CO2 made of stainless steel was especially designed for use in incubators with up to 20% CO2 concentration and up to 95% humidity. This guarantees the optimum development of your cell cultures.
Because of the ribbon cable a feedthrough is not required in the incubator.
Basic Equipment
Basic device incl. basic platform with rubber mat and external control unit with ribbon cable
Loading Capacity
Erlenmeyer flasks 100 ml 9 pieces
Erlenmeyer flasks 500 ml 2 pieces
Details
| Motion: | orbital |
| Shaking platform: | 200 x 295 mm |
| Max. load: | 2 kg |
| Shaking speed: | 5 – 220 rpm, in steps of 5 |
| Stroke: | 20 mm |
| Runtime: | 1s – 100 h / continuous |
| Accessory: | Universal tray KM Mini Universal tray KM Clamping strip KM |
Technical Specifications
| Electrical supply: | 100 – 240 V, 50 / 60 Hz |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 4 W |
| Ambient temperature: | 4°C to 45°C |
| Relative humidity: | 20 – 95 % |
| CO2 concentration: | 20 % |
| Dimensions (w x d x h): | 230 x 340 x 145 mm |
| Weight: | 7,6 kg |
