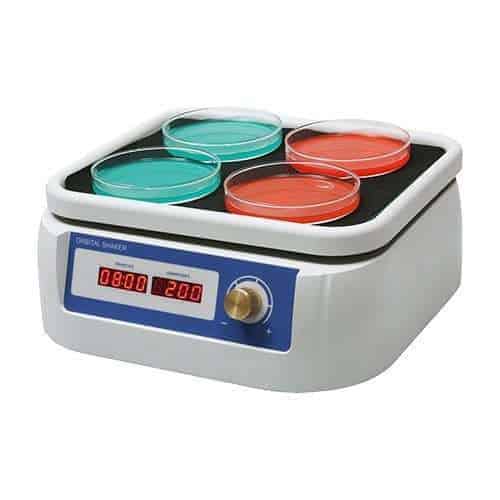

OS-100/OS-200 Orbital Shaker is a powerful variable speed shaker
which provides efficient orbital motion. Speed and time are under
microprocessor control. The OS-100/OS-200 shaker can be
applicable in different labs: microbiology, chemistry, immunology,
biochemistry and molecular biology.
The OS-200/OS-100 shaker can be applicable in different labs: microbiology, chemistry, immunology,
biochemistry and molecular biology.
Code Description
AS-04020-00 OS-200 AC100~240V, 50/60Hz, 2A
AS-04030-00 OS-100 AC100~240V, 50/60Hz, 2A
1. Digital speed control
2. Speed range 50-250 RPM
3. Orbit 20 mm
4. Digital timer 1min – 99h59min
5. Universal platform, flat platform or platforms with clamps (see below)
6. Maximum load capacity 2.5 kg
7. Orbital Shaker can be used in a cold room or incubator
8. Operating ambient: temperature range +5°C to +40°C
9. Overall dimensions: 280 x 270 x 110 mm
10.Weight: 7.2kg
11.Power supply: DC24V
Platforms for OS-200

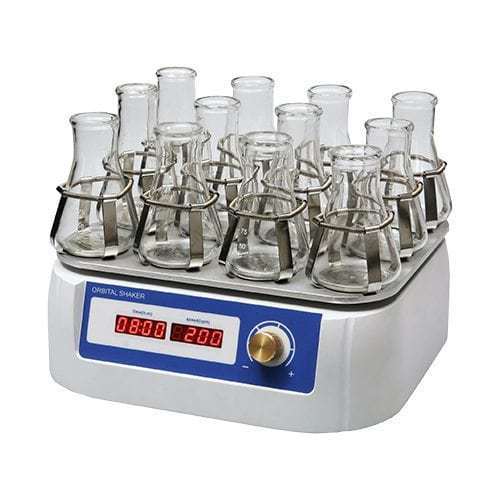

P P 1 2 – 1 0 0 Platform with clamps for flasks, 100-150ml
P P 0 6 – 2 5 0 Platform with clamps for flasks, 250-300ml
U P – 1 Universal platform with adjustable bars for different types of flasks, bottles
P P – 1 Flat platform with non-slip rubber mat
| Model | OS-200 | OS-100 |
| Shaking Speed | 50~250rpm | 50~300rpm |
| Orbit | 20mm | 10mm |
| Independent timer | 1min~99h59min | 1min~99h59min |
| Load capacity | 2.5kg | 3.0kg |
| Motor | DC brushless | DC brushless |
| Dimension(L x W x H) mm | 280 x 270 x 110 | 280 x 270 x 110 |
