AccuPlate™ Analog Hot Plate, 230V

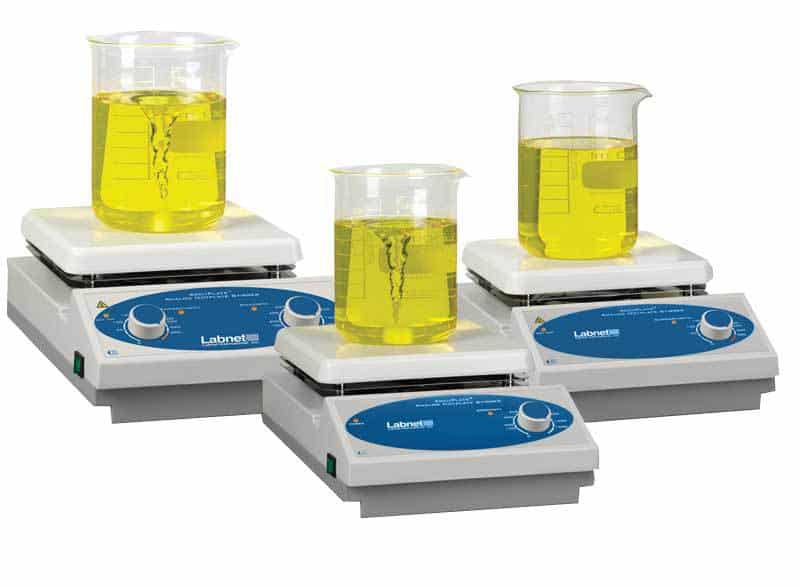

AccuPlate™ Analog Hot Plate Stirrers
Labnet‘s analog hot plate stirrers were developed to be safe and reliable, making them ideal for the Science and Education or Research markets. The 7” x 7” ceramic coated top plates have a maximum hot temperature surface rating of 380°C and provide an even heating surface. Each stirring model contains a powerful motor for precise stirring as well as a strong magnet to minimize stir bar decoupling.
Safety features include a hot top indicator lamp located on the extended control panel as well as a power switch conveniently positioned on the side of the unit. A built-in support rod holder with locking knob can accept the optional support rod.
- Precise control of temperature and stirring speeds
- Maximum hot temperature surface 380°C
- 5 liter stirring capacity
- Low profile design with 7”x7” top plate
| Product Specifications | Magnetic Stirrer | Hot Plate Stirrer | Hot Plate |
|---|---|---|---|
| Speed | 100 ~ 1500/RPM | 100 ~ 1500/RPM | |
| Capacity | 100 mL – 5L | 100 mL – 5L | |
| Control | Electronic | Electronic | Electronic |
| Watts | 15W | 695W | 680W |
| Plate Area | 180 x 180 mm (7 x 7 in.) | 180 x 180 mm (7 x 7 in.) | 180 x 180 mm (7 x 7 in.) |
| Dimensions (W x D x H) | 200 x 300 x 115 mm | 200 x 300 x 115 mm | 200 x 300 x 115 mm |
| Electrical | 110V 50/60 Hz – 220V 50/60 Hz | 110V 50/60 Hz – 220V 50/60 Hz | 110V 50/60 Hz – 220V 50/60 Hz |
| RPM (Max) | 1500 RPM | 1500 RPM | |
| Hot Plate Max Temperature | Up to 380 Degrees Celcius | Up to 380 Degrees Celcius |
