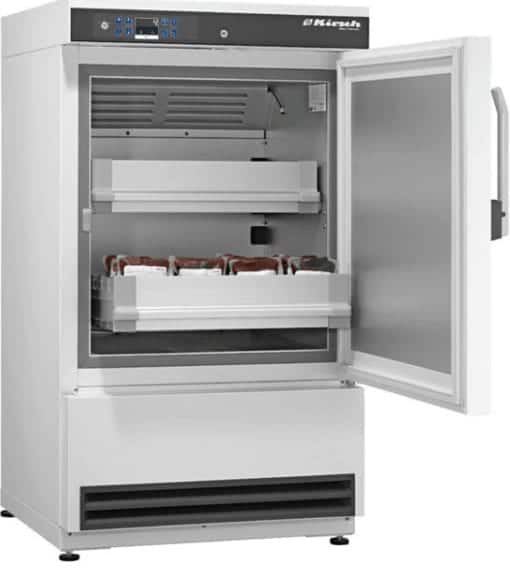

Blood Bank Refrigerator BL-176
The Blood Bank Refrigerator BL-176 can be connected to the central control unit via the potential-free contacts which are integrated as standard. A device for data evaluation can be connected to the integrated RS-485 interface.
Features:
- 2 aluminium drawers
- Comfort controller
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Battery for power failure alarm
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Optical and acoustical warning including power failure alarm
- Minimum/Maximum temperature memory
- Saftey control device prevents freezing
- Potential free contact and interface RS-485
Technical Specification:
| Capacity | 170 l |
| Temperature setting | +4 °C |
| Voltage | 220 – 240 V |
| Frequency | 50 / 60 Hz |
| Power consumtion | 155 Watts |
| Normal consumtion | 1,4 KW / 24 h |
| Overall dimensions incl. distance from wall | 70 x 77 x 122 (w x d x h in cm) |
| Interior dimensions | 55 x 52 x 60 (w x d x h in cm) |
| Usable dimensions | 53 x 41 x 47 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 70 x 136 (w x d in cm) |
| Drawer inner dimensions | 50 x 34 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 79 kg / 89 kg (net / gross) |
Options:
- Castors
- Drawer insert (Set) with adjustabel length and 21 cross dividers per drawer
- Additional length and cross dividers
- Drawer made of stainless steel instead of aluminium
- Drawer insert/dividers for stainless steel drawer
- LED illuminiation mounted on top
- Water tray for manual emptying
- GSM-Module
- PC-KIT-NET (Network capable version), PC-KIT-STICK or
PC-KIT-USB-MONITORING incl. documentation software - Pen-Recording thermometer for placing loosely inside appliance with waxed paper strips
- Disc-type pen recording thermometer with 7-day measuring cycle with 100 recording discs and 5 felt tip pens (refrigerator height then 131 cm)
- Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
