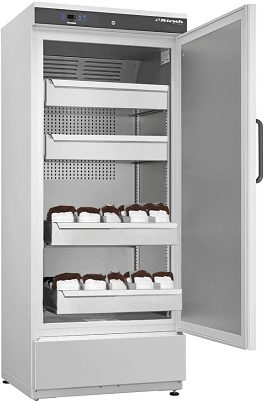

Blood Bank Refrigerator ESSENTIAL – 700

Blood Bank Refrigerator ESSENTIAL – 700

The Blood Bank Refrigerator ESSENTIAL – 700 unit consists of a robust housing and quality components “Made in Germany”. This ensures reliability and durability, which ultimately is good for your budget. The ESSENTIAL-Line standard equipment features:

• Forced-air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and melt water evaporation
• Micro-processor based control
• Optical and acoustical alarm in case of temperature deviation
• Potential free contact for alarm transmission
• Ventilation grid
• Lockable door
• Low-noise compressor for ultra silent cooling

Features:

• External housing made from galvanised sheet steel (rustproof), with white, anti-scratch powder coating.
• Length of the plug cable: approx. 3.0 m. n Adjustable feet positioned at the front to compensate uneven floors.
•  Interior made from smooth aluminium with colourless protective coating.
• Interior consists of five plastic-coated-shelves on overlays. Gibs every 15 mm.
•  Extra-thick 70-mm insulation, made from high-quality, compression-moulded and environmentally friendly material.
• Energy saving.
• Self-closing door with easy-to-replace plastic magnetic seal frame, lockable.
• Door stop on the right-hand side (by default, see illustration), or the left-hand side, can be retrofitted.
• Forced-air cooling switches off automatically when you open the door, ensures a uniform temperature and minimizes temperature deviations.
• Digital display.
• Automatic defrosting with time limit and temperature monitoring. n Condensate evaporation in stainless-steel heated dish beneath the refrigeration floor.
• Warning functions with visual and audible alarm signal in the case of temperature deviation. Door open alarm after 60 seconds.
• Alarms can be forwarded using the potential-free contact.
• Ventilation-enforced refrigerating machine, vibration free, hermetically sealed, energy saving, low noise, easy to service.

Technical Specifications:

Optional Equipment:

• Additional Shelf (to the standard equipment). n Stainless-steel-drawers (instead of shelves).
• Maximum of seven drawers. Capacity per drawer app. 50 blood bags, each 450 ml size (drawer inner dimensions: w x d x h = 56.9 x 61 x 8 cm, max. load: 40 kg).
• Additional cross and length dividers. n Antifreeze against sub-zero temperatures.
• Visual and audible alarm signal, even in the case of power failure (the monitoring unit remains in operation for approx. 72 hours on battery power).
• LED-Illumination on top.
• Glass door with lock.
• Door fitting.
• Equipped with castors.
• Condensate container can be emptied manually if no condensation is required (e.g., in an operating theatre).
• GSM-Module for alarm text message transmission (e.g., to a mobile phone).
• Temperature documentation:
  •  KIRSCH-Datalog for models without RS485 interface or third-party products.
  •  4-pin PT 100 or PT 1000 temperature sensor, class 1/3 B, including built-in reference body. – Disc-type pen recording thermometer, with 7-day measuring cycle, incorporated, with 100 recording discs and   5 felt tip pens.
  •  Mechanical pen-recording thermometer with two waxed paper strips.
