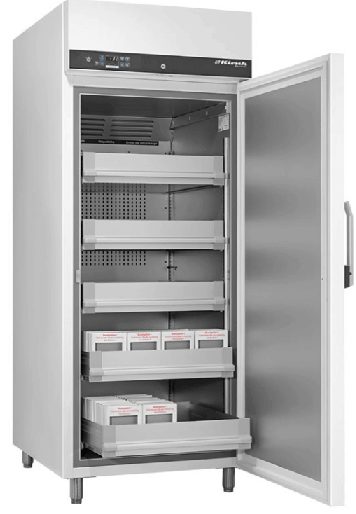

Blood Plasma Freezer FROSTER BL 730
The Blood Plasma Freezer FROSTER BL 730 is part of the KIRSCH Blood Plasma Freezers range. With 5 stainless steel drawers, selected models can be fitted with a water-cooled refrigeration machine on request. The generated heat is being abducted via a cold water cycle which is already installed in the device. This provides thermal relief in the installation room
Features:
- 5 aluminium drawers
- full extension drawer
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Height-adjustable drawers
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission.
Technical Specifications:
| Capacity | 700 l |
| Temperature setting | -32°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumtion | 730 Watts |
| Normal consumption | 11,4 KW / 24 h |
| Overall dimensions incl. distance from wall | 77 x 98 x 193 – 196 (w x d x h in cm) |
| Interior dimensions | 62 x 77 x 140 (w x d x h in cm) |
| Usable dimensions | 60 x 66 x 127 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 77 x 166 (w x d in cm) |
| Drawer inner dimensions | 56 x 60 x 10 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 199 kg / 234 kg (net / gross) |
Optional Equipment
- Castors
- Additional drawer made of aluminium
- Length and cross dividers
- Drawer made of stainless steel instead of aluminium
- Drawer insert/dividers for stainless steel drawer
- Shelf 59,7 x 65 cm with mounting brackets or rails
- Baskets with rails 60 x 65 x 10 cm
- Aluminium tray with rails 60 x 65 x 2,5 cm
- GSM-Module
- Outer housing in stainless steel 4301, brushed
- PC-KIT-NET (Network capable version), PC-KIT-STICK or
PC-KIT-USB-MONITORING incl. documentation software - Pen-Recording thermometer for placing loosely inside appliance with waxed paper strips
- Disc-type pen recording thermometer with 7-day measuring cycle with 100 recording discs and 5 felt tip pens
- Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
