ChemFAST Elite
Applications
ChemFAST Elite range is used for the containment and removal of toxic vapors and aerosol, providing operator safety in a wide range of disciplines. Applications for ChemFAST fume cupboards may be found in many laboratories, including those in clinical diagnostic testing, biological and medical research, analytical chemistry, Q. C., biotechnology, pharmaceutical industries, food, fine chemical, petrochemical, cosmetic, photographic laboratories and the electronics industries
Operational Principles
Air from external environment is directly drawn inside the working chamber preventing from the chemical vapors being split to the external environment. Inlet air is firstly filtered by means of G4 pre-filter located on the top of working area in order to remove particulates; air is then filtered, by means of activated charcoal filters positioned on the top of the equipment , which absorb lower molecular organic compounds and inorganic gases and vapors, before being exhausted in the environment.
Specifications
External structure made by cold rolled epoxy painted galvanized external for superior resistant against chemical solvents aggression. Alternatively special models with external structure made in AISI 304L stainless steel for superior cleanability are also available on demand.
Acid resistant PVC rear wall.
Acid resistant PVC work surface with special design to drive the liquids spilt to the corners of the surface (AISI 316 stainless steel available as option).
Front window: Stratified hinged safety glass to give easy access to large items. It is provided with gas springs to keep it open during maintenance or sanitization operations.
Motor blower: IP54 centrifugal motor fan, capable of maintaining a constant airflow by compensating for the clogging of the prefilters, which occurs during normal operation.
Back side hole on the rear panel with rubber cover to plug external devices.

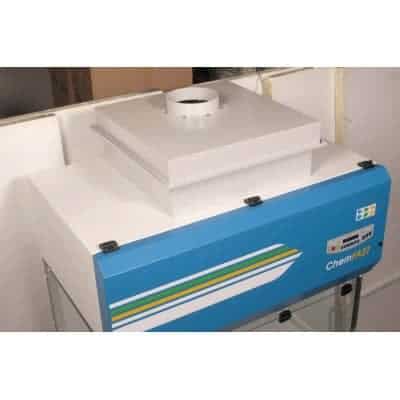

200mm collar placed on the top of the unit for optional ducting connection.
Lighting: fluorescent tubes in built-in housing, placed outside the working area.
The user-friendly practical keyboard and the rear-lit LCD will continuously display the face speed and a digital setting system to select the most suitable velocity for each specific contaminant used.
Products in ChemFAST Elite range
| SKU | Name | description |
|---|---|---|
| F00001830000 | ChemFAST Elite 06 | Width [cm]: 60 Pressure: Negative Motor-blowers: Single fan |
| F00001840000 | ChemFAST Elite 09 | Width [cm]: 90 Pressure: Negative Motor-blowers: Single fan |
| F00001850000 | ChemFAST Elite 12 | Width [cm]: 120 Pressure: Negative Motor-blowers: Single fan |
| F00001860000 | ChemFAST Elite 15 (with work surface made of AISI 316L stainless steel) | Width [cm]: 150 Pressure: Negative Motor-blowers: Double fan |
| F00001870000 | ChemFAST Elite 18 (with work surface made of AISI 316L stainless steel) | Width [cm]: 180 Pressure: Negative Motor-blowers: Double fan |
