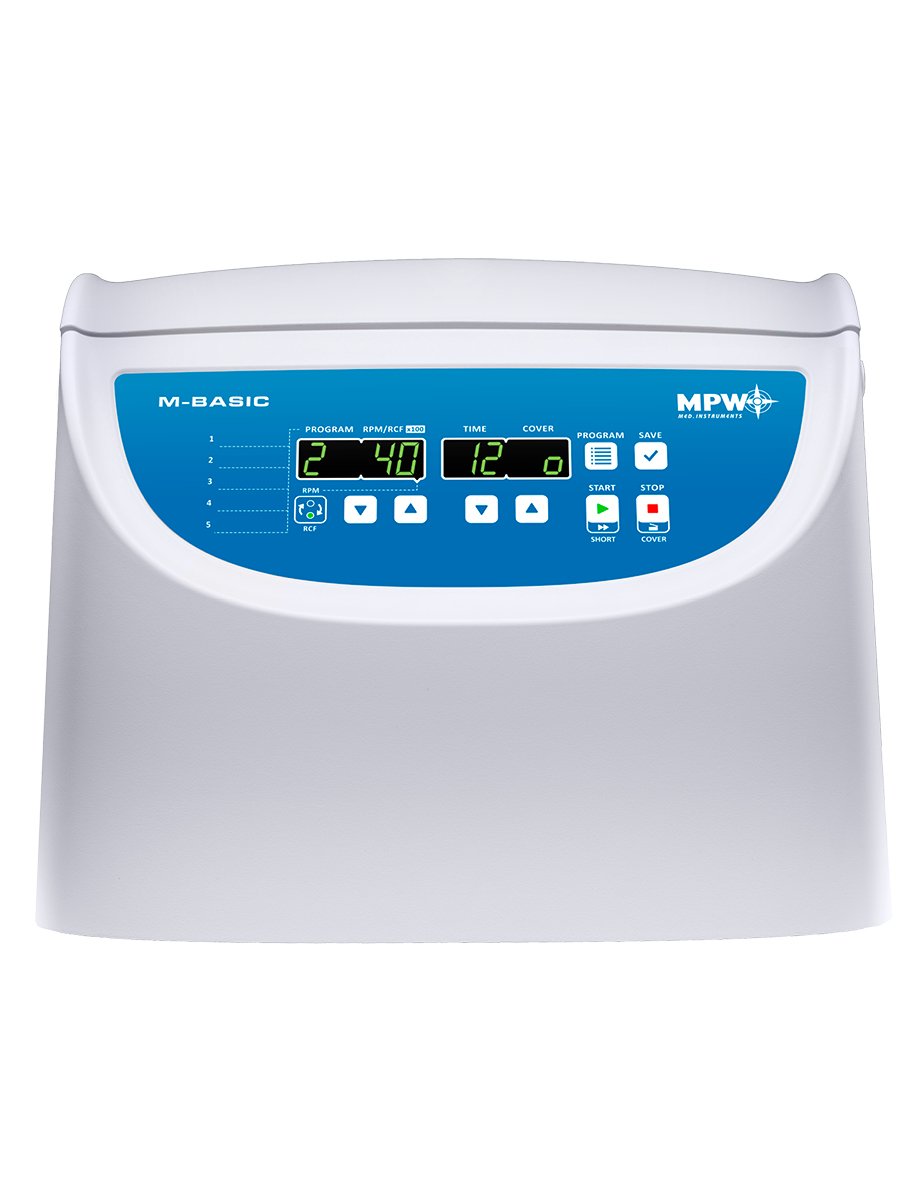

M-BASIC Laboratory Centrifuge

M-BASIC Laboratory Centrifuge

M-BASIC is small, universal and easy-to-use offering exceptional possibilities.
Its advantage is a unique rotor that combines the features of a traditional angel and horizontal rotors. The revolutionary design allows spinning at 45° and 90° without changing the rotor, only by repositioning the buckets.
Thanks to its versatility, the same device can be used for daily tests (CBC or urine analysis) and for PRP preparation. It is suitable for small medical laboratories, research institutes and dental or esthetic medicine clinics. M-BASIC will also have applications in surgery, orthopaedics, veterinary medicine, sports medicine and many others.

M-BASIC’s small size fits in a small lab space, while its 8-tube capacity and low power consumption ensure efficiency without excessive environmental damage. This centrifuge combines durability and performance as well as exceptional reliability and safety.

M-BASIC is perfect for those who need a multipurpose, cost-effective and easy-to-use centrifuge for everyday work.

Features

Horizontal-and-angular rotor (unique system for placing containers in horizontal and angular positions)
maintenance-free induction motor
low noise level
5 user programs (chosen with use of direct selection key)
changing of parameters during centrifuging
saving previously used setting
clear LED display
device’s status indicated by visual and sound signals
easy speed or RCF adjustment (chosen with use of direct selection key)
automatic lid opening
time calculation from START key pressing or from reaching preselected speed
2 acceleration characteristics: FAST, SOFT
3 deceleration characteristics: FAST, SOFT, RUN OUT
HOLD operation mode (infinite time of centrifugation)
SHORT time operation mode
centrifugation cycles count
effective ventilation system

Specification

Power supply :230V 50/60Hz; 120V 50/60Hz
(option 100, 110, 127V 50/60Hz)
Power [W] :120
Capacity [ml] :8 x 15; 2 x 50; 2 x 60 PRP
Max. RPM [m-1] :300 ÷ 4000, step 100
Max. RCF [x g] :2 469
Setting time :1 ÷ 99 min, step 1 min, ∞ (HOLD)
Dimensions H x W x D [mm] :300 x 365 x 450
Height with open lid [mm] :572
Weight [kg] :21/23 *
Min. acceleration time [s] :35
Min. braking time [s] :33
* weight of the centrifuge depends on the voltage version

Security

stainless steel rotor chamber
imbalance detection
lid locking during rotor running
start blocking at opened lid
product conforming with the EN-61010-1 and EN-61010-2-020, EN-61010-2-101 standards
