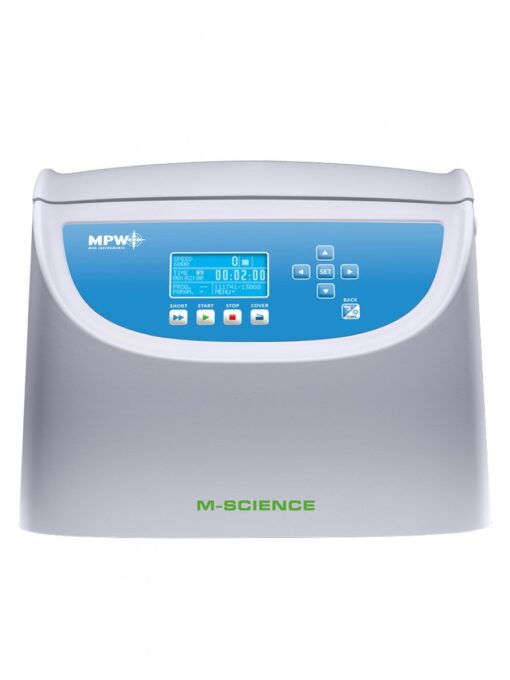

M-SCIENCE Laboratory Centrifuge

M-SCIENCE Laboratory Centrifuge

The MPW M-SCIENCE Laboratory Centrifuge – highspeed angle rotors are suitable for test tubes of 0.2 ml to 10 ml capacity and achieve high accelerations (up to 24 270 x g) which helps proper separation of the inhomogeneous mixture and effective centrifugation of the sample, for instance at isolation, purification and quality assessment of nucleic acids (DNA, RNA), molecular and other analysis.

Features

modern design
low noise level
maintenance-free induction motor
modern software system
large graphic LCD – blanking the screen after a period of inactivity
2 screen modes (simplified and normal)
10 menu languages (PL, EN, ES, IT, PT, DE, RU, FR, SE, CZ)
visual and sound alerts of different notifications
100 user programs
10 acceleration/deceleration curves
speed or RCF adjustment
manual centrifugal radius adjustment (with automatic RCF correction)
time calculation from start key pressing or from reaching the preselected speed
ascending or descending time counting
continuous operation mode – HOLD
SHORT time operation mode
changing of parameters during centrifuging
automatic rotor identification
automatic lid opening
selected functions blocking, password protection
effective ventilation system

Specification

Power supply :230V-50/60Hz; 120V-50/60Hz
(option 100, 110, 127V 50/60Hz)
Power [W] :220
Capacity [ml] :100 (24 capillaries 75 mm)
Max. RPM [m-1] :90 ÷ 18 000
Max. RCF [x g] :24 270
Setting time :1s ÷ 99h 59min 59s, ∞, step 1s
Dimensions H x W x D [mm] :300 x 367 x 455
Height with open lid [mm] :572
Weight [kg] :22/23 *
Min. acceleration time [s] :14
Min. braking time [s] :12
* Weight of the centrifuge depends on the voltage version

Security

stainless steel rotor chamber
unbalance sensor
lid locking during rotor running
start blocking at opened lid
emergency lid lock release
product conforming with the EN-61010-1 and EN-61010-2-020, EN-61010-2-101 standards
