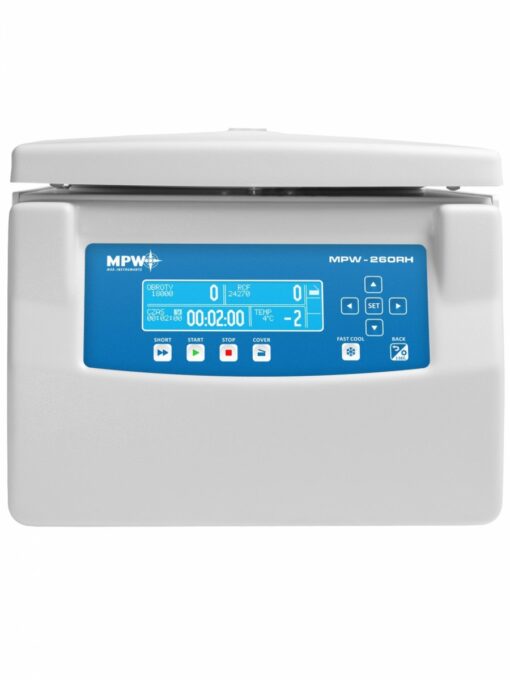

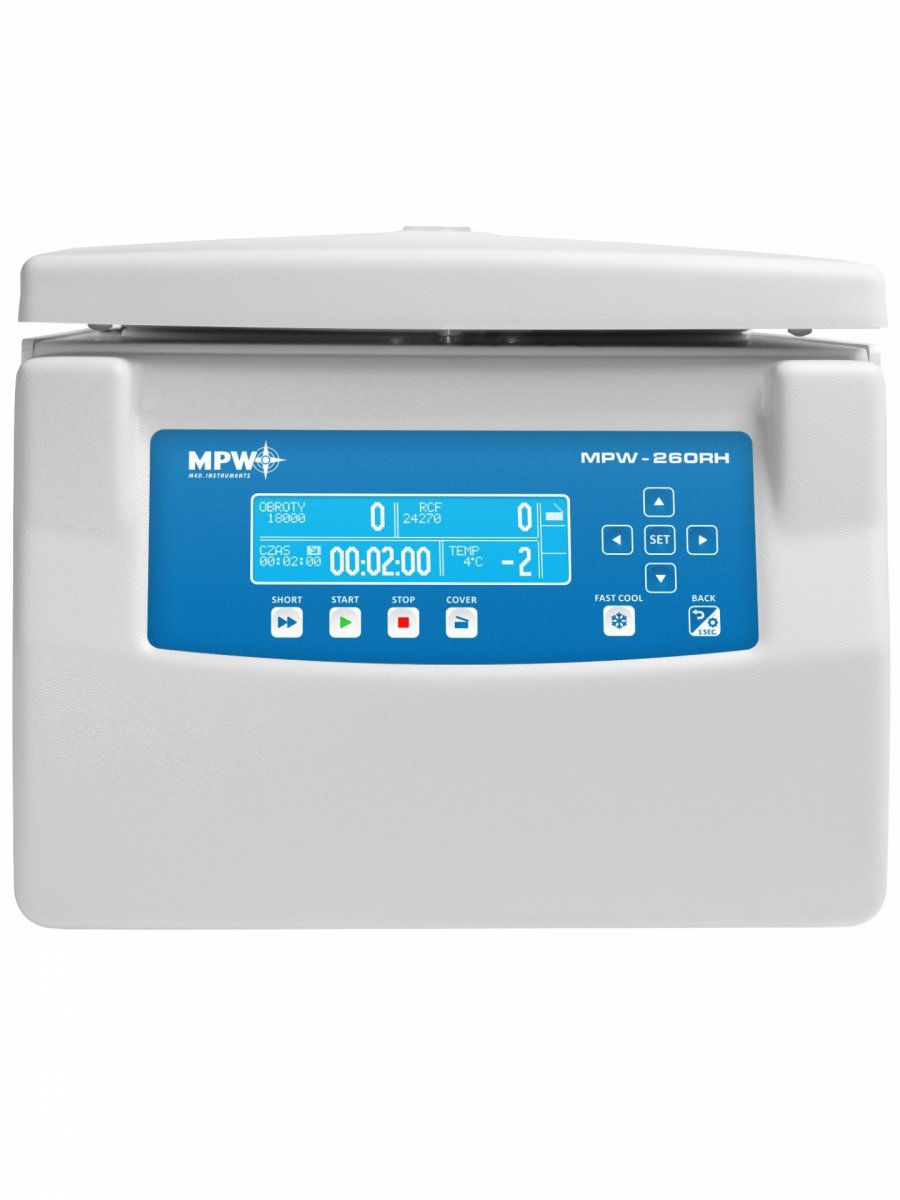

MPW-260RH Laboratory Centrifuge

MPW-260RH Laboratory Centrifuge

The MPW-260RH Laboratory Centrifuge is a laboratory cooling and heating table centrifuge designed for general use. Together with the MPW-260 and MPW-260R, they form a family of centrifuges that, thanks to the ability to configure with a large number of available rotors, ensure versatility and precision in the spinning process.

They are used in medical, biochemical, veterinary, industrial and other laboratories.

Features

with cooling and heating
temperature + 4 ° C provided for maximum speed of each rotor
delayed start function
starts working at a certain temperature
initial cooling during centrifuging FAST COOL
maintenance-free induction motor
modern programming system
large graphical LCD display (MPW-260RH)
simultaneous indication of the preset and current values ​​of speed, RCF, time, temperature
99 user programs
10 acceleration / deceleration characteristics
programming of multi-segment acceleration and deceleration characteristics
RPM / RCF regulation
two countdown modes: from pressing the start key or reaching the set speed
HOLD continuous mode
work in “SHORT” mode
possibility to change parameters during spin
rotor auto-identification
automatic opening of the lid
records spin parameters – MPW Editor – PC (USB)
change of menu language (PL, EN, ES, IT, PT, DE, RU, SE, FR, CZ)
block selected features, password access protection
programmable density setting for samples> 1.2g / cm3 (with automatic maximum speed correction)
stainless steel centrifuge chamber
wide range of rotors and additional equipment

Specification

Power supply :230V 50Hz; 100V, 110V, 120V, 127V 60 Hz
Power [W] :800
Capacity [ml] :500 (24 capillaries)
Max. RPM [m-1] :90 ÷ 18 000
Max. RCF [x g] :24 270
Setting time :1s ÷ 99h 59min 59s + ∞, step 1s
Dimensions H x W x D [mm] :315 x 365 x 660
Height with open lid [mm] :620
Weight [kg] :43,9/46,1 *
Min. acceleration time [s] :7
Min. braking time [s] :8
Temperature :-20°C ÷ +55°C
* weight of the centrifuge depends on the voltage version

Security

signaling imbalance
locking lid during spin
lockout with open lid
emergency lid opening
product compliant with international safety standards EN-61010-1 and EN-61010-2-020, EN-61010-2-101
