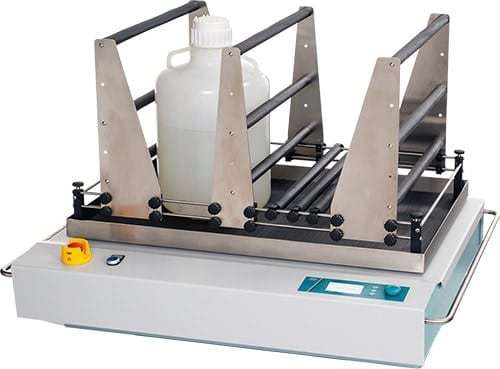

The big heavy-duty shaker VKS 75 B control with digital display and programmable control has a horizontal shaking motion, a speed range of 30 – 200 rpm and a stroke of 50 mm. The VKS 75 B control is ideally suited for high loads up to 75 kg. (floor installation only!)
Basic Equipment
Basic device without shaking plate, without rack system
With emergency stop, digital display and programmable control
Loading Capacity
Erlenmeyer flasks 500 ml 32 pieces
Erlenmeyer flasks 2000 ml 12 pieces
Separating funnels 1000 ml 6 pieces
Options:
Stroke 36 mm
Stroke 60 mm
Stroke 80 mm
Control interface
USB interface
Details
| Motion: | reciprocating (horizontal) |
| Shaking platform: | 760 x 600 mm |
| Max. load: | 75 kg |
| Shaking speed: | 20 – 200 rpm, in steps of 5 |
| Stroke: | 50 mm (option: 36, 60 or 80 mm) |
| Timer: | programmable / continuous |
| Accessory: | Shaking plate VKS (1-storey) Rack System Combifix VKS A Rack System Combifix VKS B Rack System Combifix VKS C Universal tray VKS 1-storey Rack System VKS (2-storey) Rack System VKS "Giant" (3-storey) |
Technical Specifications
| Electrical supply: | 100 – 240 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | max. 45 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 1050 x 835 x 250 mm |
| Weight: | 110 kg |
