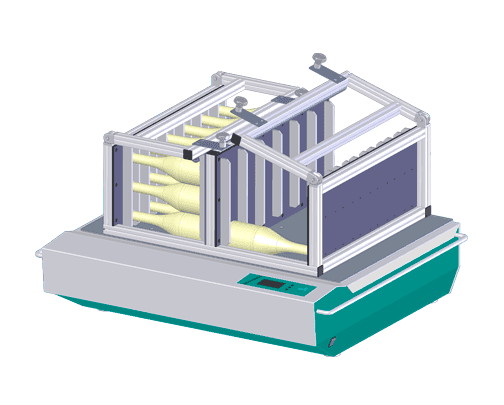

The big heavy-duty shaker VKS 75 B control with digital display and programmable control has a horizontal shaking motion. With a shaking speed up to 80 rpm, a stroke of 130 mm, a loading capacity up to 75 kg and an adapted rack system the shaker is optimally suited for up to 36 horizontal champagne bottles or bottles of similar size. (floor installation only!)
Basic Equipment
Basic device without shaking plate, without rack system.
With digital display and programmable control
Loading Capacity
Up to 36 horizontal champagne bottles.
Option:
Control interface
USB interface
Details
| Motion: | reciprocating (horizontal) |
| Shaking platform: | 760 x 600 mm |
| Max. load: | 75 kg |
| Shaking Speed: | up to 80 rpm, in steps of 5 |
| Stroke: | 130 mm |
| Timer: | programmable / continuous |
| Accessory: | Rack system for champagne bottles |
Technical Specifications
| Electrical supply: | 100 – 240 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | max. 45 W |
| Umgebungstemperatur: | 5°C bis 50°C |
| Ambient temperature: | ~ 85 % |
| Dimensions shaker (w x d x h):: | 1050 x 835 x 250 mm |
| Weight: | 110 kg |
| Total weight (Shaker + Rack system): | 135 kg |
