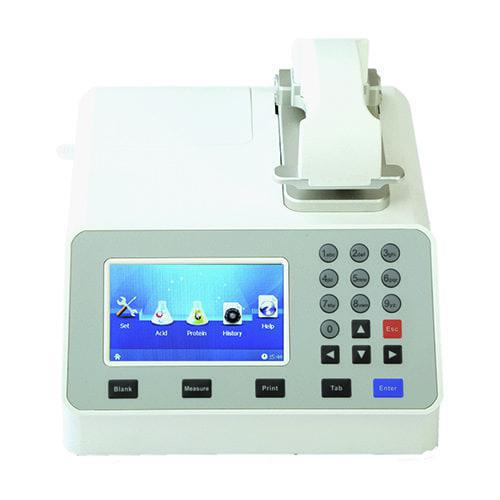

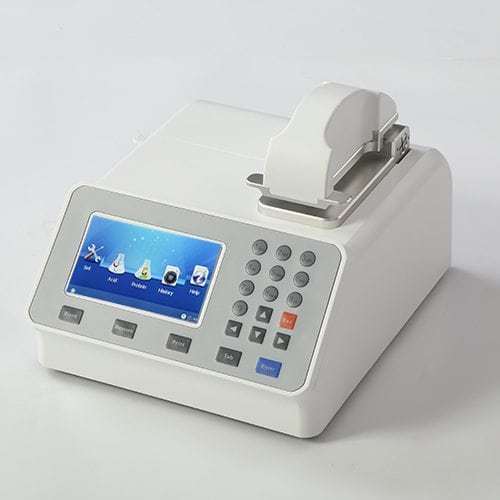

Nano-200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure of Nucleic Acid (DNA/RNA). Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, Nano-200 can automatically complete the measurement within 5 seconds.
Nano-200 is a Nucleic Acid Analyzer designed for analyzing the concentration and pure of Nucleic Acid (DNA/RNA). Simply pipette 0.5~2ul sample onto the pedestal, laying down the sampling arm, Nano-200 can automatically complete the measurement within 5 seconds.
Applications:
.jpg)
Easy Handling:
.jpg)
Code Description
AS-11030-00 Nano-200 DC24V
1. Direct, easy measurements in less than 10 seconds: just pipette & wipe
2. Touch screen and panel operation, without computer
3. Measures DNA, RNA (A260) and Protein (A280), concentrations and sample purity (260/280 ratio)
4. Easy to use: Simple pipette a sample onto the pedestal, measure, wipe the pedestal
5. Require only 0.5~2ul samples
6. Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvetes, no dilitions and expensive comsumables
7. Low-cost operation–no plates or other consumables
8. Optional data output via built-in printer, SD-RAM Card, USB memory
| Model | Nano-200 |
| Wavelength Range | 230nm, 260nm, 280nm |
| Minimum Sample Size | 0.5~2.0ul |
| Path Length | 0.2mm (For high concentration measwrement) 1.0mm (For ordinary) |
| Light Source | Xenon flash lamp |
| Detector Type | Photodiode |
| Wavelength Accuracy | —- |
| Spectral Resolution | —- |
| Absorbance Precision | 0.002 Abs |
| Absorbance Accuracy | 1% (7.332Abs at 260 nm) |
| Absorbance Range | 0.02 – 80A (10 mm equivalent) |
| Detects Nucleic Acid up to | 10~4000 ng/ul (dsDNA) |
| Measurement Time | <10s |
| Dimensions (W x D x H)mm | 210 x 268 x 181 |
| Weight | 2.8kg |
| Sample Pedestal Material | Aluminum alloy and Quartz fiber |
| Operating Voltage | 24V DC |
| Operating Power Consumption | 20 W |
| Standby Power Consumption | 5W |
| Software Compatibility | Win CE |
