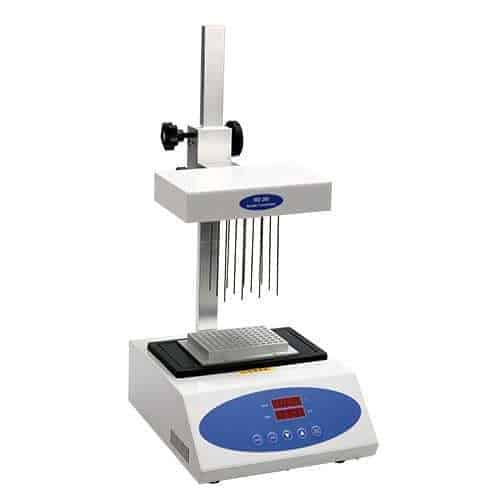

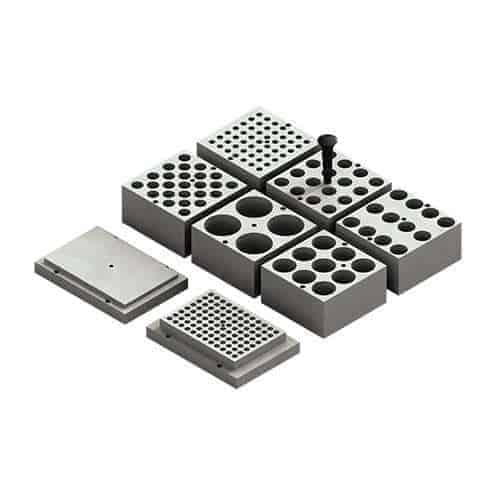

1. MD200-1A Sample Concentration consists of a base and stand assembly, sample holder and gas distribution system. Test tubes are held in a block. The gas at 5~10 psig passes through the distribution manifold.
2. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the height. Needles or glass pipets blow gas onto the surface of the solution resulting in evaporation of the solvent
MD200-1A consists of a base and stand assembly, sample holder and gas distribution system. Test tubes
are held in a block. The gas at 5~10 psig passes through the distribution manifold. Depending on the test-
tube size and solvent volume they can be individually raised or lowered to the height. Needles or glass
pipets blow gas onto the surface of the solution resulting in evaporation of the solvent.
Code Description
AS-06060-00 MD200-1A AC220V or AC120V, 50/60 Hz, 200W
1. High precision and wide range of temp control
2. Blowing a large number of samples at one time
3. Blowing each sample independently
4. Amount of airflow can be adjusted
5. Easy operation; safe and reliable to use
Model | MD200-1A |
Temperature Control Range | RT+5°C~150°C |
Timer | 1min~99h59min |
Display | LED |
Temp. Control Accuracy @40~100°C | ±0.5°C |
Temp. Control Accuracy @100~150°C | ±1°C |
Display Accuracy | 0.1°C |
Heating Time(40~150°C) | ?30min |
Standard Blocks | 1 |
Nitrogen Consumption | 0-15L/min |
Dimension(mm) | 280 x 240 x 500 |
Needle Length | 80mm |
