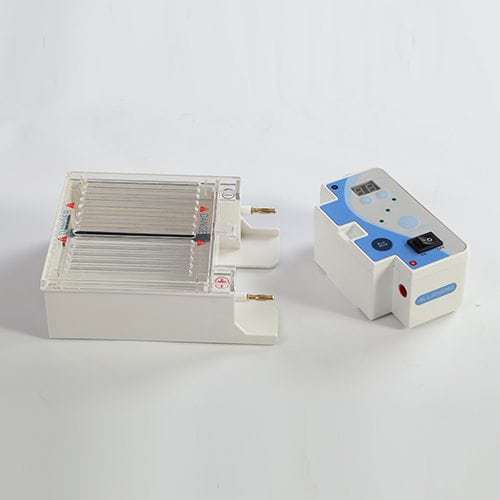

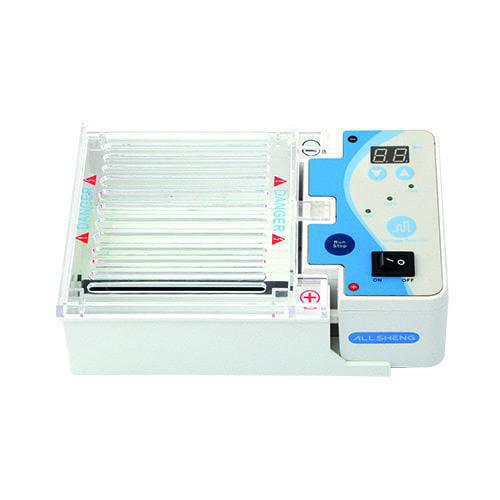

Mini-ES Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages 35V / 50V / 100V, compact, lightweight and easy to operate are its features.
1. Mini-ES1: AC100~120V 50~60Hz
2. Mini-ES2: AC220~240V with transformer 50~60Hz
3. Output Power: DC35V/DC50V/DC100V
Mini-ES Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages
35V/50V/100V, compact, lightweight and easy to operate are its features.
35V/50V/100V, compact, lightweight and easy to operate are its features.
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed
while the system is operating, it will be shut down immediately. It’s ideal for many applications, including
Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment
analysis, DNA fingerprinting and high-throughput analysis.
while the system is operating, it will be shut down immediately. It’s ideal for many applications, including
Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment
analysis, DNA fingerprinting and high-throughput analysis.
Code Description
AS-14010-00 Mini-ES1 AC100~120V 50~60Hz
AS-14020-00 Mini-ES2 AC200~240V 50~60Hz
1. Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
2. Output Power: DC35V/DC50V/DC100V
3. Bath Dimensions (WxDxH): 110x121x43mm
4. Volume of Bath: 230ml
5. Construction of Bath: PC+ABS with high temperature resistance
6. Max.Power:40W
7. Timer:0~99min
8. Overall Dimensions (WxDxH):190x130x60mm
2. Output Power: DC35V/DC50V/DC100V
3. Bath Dimensions (WxDxH): 110x121x43mm
4. Volume of Bath: 230ml
5. Construction of Bath: PC+ABS with high temperature resistance
6. Max.Power:40W
7. Timer:0~99min
8. Overall Dimensions (WxDxH):190x130x60mm
| MODEL | Mini-ES |
| Input Power | Mini-ES1: AC100~120V 50~60Hz Mini-ES2: AC220~240V with transformer 50~60Hz |
| Output Power | DC35V/DC50V/DC100V |
| Bath Dimensions (WxDxH) | 110x121x43mm |
| Volume of Bath | 230ml |
| Construction of Bath | PC+ABS with high temperature resistance |
| Max.Power | 40W |
| Timer | 0~99min |
