Orbital shakers – SSM1 SSL1
Orbital shakers – SSM1 SSL1
Smooth orbital shaking action
Orbit of 16mm is ideal for larger samples for example multi well plates
Built-in digital timer
Variable speed control to 300rpm
Supplied with non-slip mat for multi-well plates etc.
Optional accessory cradle system for flasks and bottles
The compact SSM1 provides a smooth uniform circular motion with an orbit of 16mm. It is supplied with a non-slip mat that can hold up to four multi-well plates or diagnostic cards. The shaking action is ideal for samples of 0.5 to 5ml held in multi well plates dishes and Petri dishes.

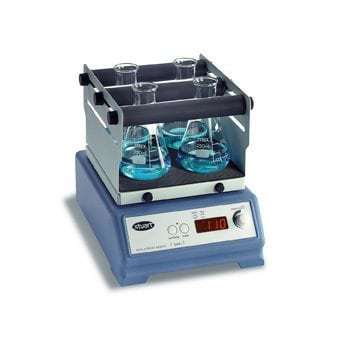

The shaker can be used in incubators and environmental chambers (up to 40°C and 80% humidity). Alternatively an accessory cradle system is available that can accommodate a variety of vessels including flasks bottles or beakers via four rubber securing bars. It turns the SSM1 into a very effective mini platform shaker. It will hold up to: 4 x 250ml or 2 x 500ml or 1 x 1000ml Erlenmeyer 8 flasks or bottles. These larger vessels are held between the rubber bars. The flexible cradle system has the benefit that different combinations of vessels can be used offering maximum versatility.
Speed is variable from 30 to 300 rpm. Once set on the digital display the shaking speed is effectively maintained even over long periods of time. Shaking times can be set to run for 1 to 999 minutes on the built-in digital timer or the unit can be set for continuous operation.
The SSL1 has all the features of the SSM1 but in a larger unit. The SSL1 also comes complete with a cradle system rather than a non slip mat to comfortably hold flasks. The cradle type platform has four rubber cushioned horizontal securing bars with quick release handles. They can be easily adjusted both vertically and horizontally to hold most sizes and types of vessel including flasks bottles and beakers. For example they will accommodate the following Erlenmeyer flasks or bottles: 12 x 250ml or 9 x 500ml or 6 x 1000ml or 2 x 2000ml.
The main advantage of this cradle system is that it can accommodate different sizes of vessel a common requirement where shakers are used by different people in the laboratory.
|Platform dimensions (w x l)||220 x 220mm||335 x 335mm|
|Speed range||30 to 300rpm||30 to 300rpm|
|Orbit / amplitude||16mm||16mm|
|Overall dimensions (w x d x h)||240 x 300 x 140mm||360 x 420 x 270mm|
|Operational temperature range||+4 to +40°C||+4 to +40°C|
|Maximum permissible humidity||80%||80%|
|Electrical supply||230V 50Hz 50W||230V 50Hz 50W|
|SSM1||Shaker orbital mini|
|SSM1/1||Accessory cradle with 4 securing bars|
|SSM1/2||Large platform (340 x 300mm holds up 8 plates)|
|SSM1/3||Clear Acrylic lid|
|SSL1||Shaker orbital lab scale|
|SSL1/1||Accessory platform 510 x 510mm with six rubber|
|SSL1/2||Large flat platform no cradle for SSL1|
