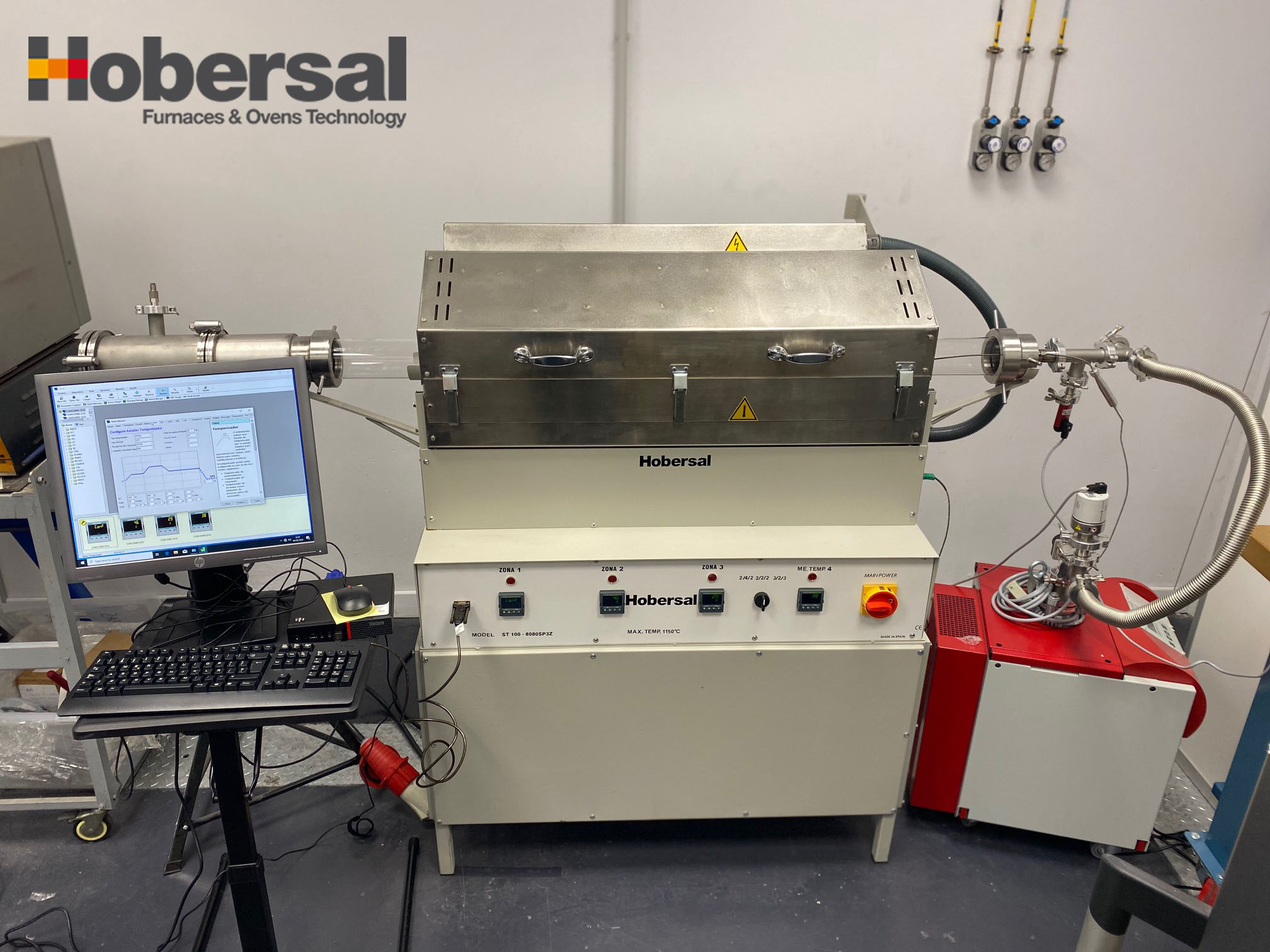

ST Series ( split and horizontal tube furnace) up to 1100ºC

ST series Tube Furnace
Horizontal and split tube furnace up to 1100ºC
Temperatures 1.100 ºC
Custom sizes: heating length and tube diameter
Oxidant atmosphere, controlled atmosphere or vacuum
Split and horizontal works
1, 2, 3, or 4 independent zones
Let work 24/7 in continuous mode
Heating elements around the tube (Kanthal wire)
Low thermal mass insulation
Built with low density ceramic bricks and ceramic fiber
Double isolation chamber
Outside casing in metal sheet painted ( inox as optional)
Thermocouple type K or S
Compact and lightweight furnace
Easy to replace all the spare parts by the end user
Furnace control:
Under the furnace or independent
Solid state relay
PAD Digital control. Microprocessor. Alarm.
Furnace disconnection by thermocouple break
Manufactured under the CE
Accessories
End seals refrigerated by water
Thermocouple entry
Inlet gas entry
Vacuum pump
Security class II. Over-temperature protection
Flow meter box
Silicon joints
Ceramic, Pythagoras, alumina tubes
Crucibles
Optional regulation
1 program 8 steps (Programmer)
4 program 15 steps (Programmer)
Data logger and programmer communication by Ethernet/ RS232
