ST Series ( Universal tube furnaces ) up to 1100ºC

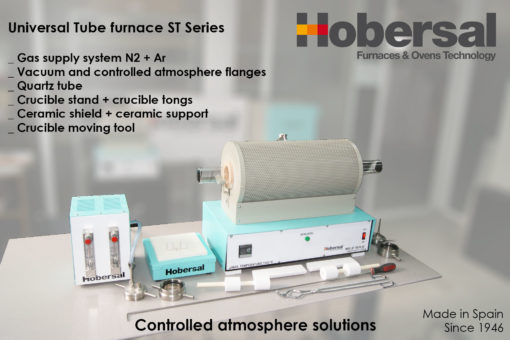

ST series Universal Tube Furnace
Horizontal tube furnaces up to 1100ºC and 1300ºC
Oxidant atmosphere, controlled / inert atmosphere (N2, Ar, O2, H2…) and vacuum / high vacuum
Temperatures up to 1100ºC and 1.300 ºC
Custom sizes: heating length and tube diameter
Oxidant atmosphere, controlled / Inert atmosphere or vacuum / High vacuum
Ramp programmer up to 64 steps
Split and horizontal works
1, 2, 3, or 4 independent zones
Let work 24/7 in continuous mode
Heating elements around the tube (Kanthal wire)
Low thermal mass insulation
Built with low density ceramic bricks and ceramic fiber
Double isolation chamber
Outside casing in metal sheet painted ( inox as optional)
Thermocouple type K or S
Compact and lightweight furnace
Easy to replace all the spare parts by the end user
Furnace control:
Under the furnace or independent
Solid state relay
PAD Digital control. Microprocessor. Alarm.
Furnace disconnection by thermocouple break
Manufactured under the CE
Accessories
End seals refrigerated by water
Thermocouple entry
Inlet gas entry
Vacuum pump (Oerlikon Brand)
Vacuum pump + Turbolab Station up to x10-5 + vacuum software (Oerlikon Brand)
Security class II. Over-temperature protection
Flow meter box
Silicon joints
Ceramic, Pythagoras, alumina tubes
Crucibles
Regulation (Optional)
Eurotherm EPC series (Ramp Programmer + software Itools) 10 Progs / 25 steps – via Ethernet (Curves downloadable in CSV-Excel)
Eurotherm Nanodac series (Ramp Programmer + software Itools) 10 Progs / 25 steps – via Ethernet (Curves downloadable in CSV-Excel) According AMS2750E and 21CFR part 11
Universal tube furnaces applications:
Metal sintering, ceramic sintering, brazing, calcination, soldering, pyrolysis, hardening, ageing, catalyst research, drying, testing, solar energy, synthesis, photovoltaic…
