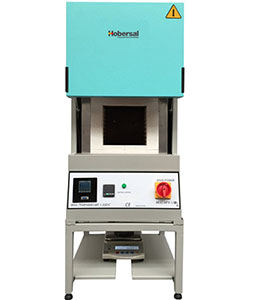

THERMO GRAVIMETRIC ANALYSIS FURNACES MF TGA

Muffle Furnace
Determination of combustion loss
Thermo gravimetric analysis (TGA)
Temperatures from 1.000 ºC to 1.900 ºC
Data logger and programmer communication by Ethernet/ RS232
Balance included
From 3 to 30 liters
Vertical lift door
Let work 24/7 in continuous mode
2 heating zones
Low thermal mass insulation
Built with low density ceramic bricks and ceramic fiber
Double isolation chamber
Outside casing in metal sheet painted ( inox as optional)
Ventilated via rear by ceramic chimney
Ceramic tray included
Thermocouple type K, S and B
Compact and lightweight furnace
Easy to replace all the spare parts by the end user
Furnace control:
Under the furnace
Solid state relay
PAD Digital control. Microprocessor. Alarm.
Furnace disconnection by thermocouple break
Manufactured under the CE
Accessories
Ceramic tray
Refractory steel tray
Smoke chimney
Forced smoke chimney
Security class II. Over-temperature protection
Inlet gas entry
Flow meter box
