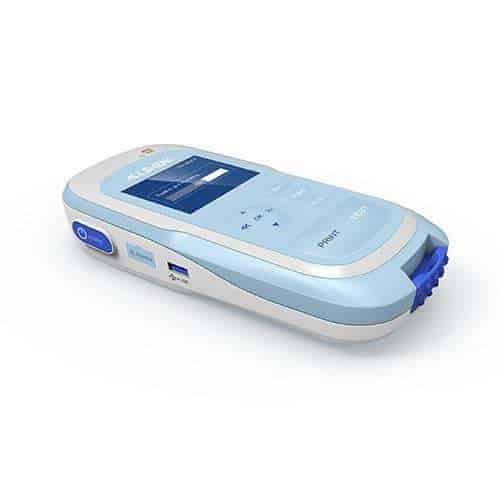

The TSR-200 Test Strip Reader is a handheld rapid test reader, designed to scan and provide objective digital read-out results for membrane-based lateral flow immunochromatographic assays.
The TSR-200 can make rapid, high sensitivity–in qualitative, semi-quantitative, fully quantitative measurements for immunochromatographic reagent kits.
TSR-200 portable Test Strip Reader is a compact design and extremely small reader. The reader is your solution for customized colorimetric tests. It can make rapid, high sensitivity–in qualitative, semi-quantitative, fully quantitative measurements for immunochromatographic reagent kits.
TSR-200 Portable Test Strip Reader is capable of reading up to 5 lines evaluating the Lateral Flow Colloidal Gold test cassettes and strips. The data can be saved using USB port or can be printed by the reader.
Small footprint and easy to use
The TSR-200 reader is a compact designed hand held device. With the TSR-200 you are faced with a professional small instrument for rapid and automated analysis. It’s ideal for meeting the needs for reliable in-the-field drug of abuse and point-of-care testing.
Applications:
— Customs Inspection
— Environment Monitoring
— Food Safty
— Environment Monitoring
— Food Safty
Code Description
AS-12020-00 TSR-200 Immunochromato-Reader DC 12V 4A
1. A portable reader customized to your needs
2. Adaptable to most test cassette and strip formats
3. Supports a wide range of reagents as well as reagent development
4. High-sensitivity measurement with high repeatability
5. Large built-in memory can save more than 1,000 measurement records which you can check out at anytime
6. Colorimetric detection: Colloidal gold, colored latex beads, carbon etc.
7. Automatic line position detection and intensity calculation
8. The results are highly sensitive compared to human eye readings
9. OEM service is available according to diferent reagent kits or fluorescence detection
10. Internet, wireless internet function extendable
| Modle | TSR-200 |
| Display | Monochrome graphical LCD display |
| Test Strip dimensions | Width: 3~5mm, length<75mm |
| Test cassette dimensions | 70x20x5mm (L x W x H) |
| Wavelength | 525±30nm (Can Custom-make) |
| Colorimetric detection | Colloidal gold, colored latex beads, carbon etc. |
| Number of test | 1 |
| Number of test lines per strip | Up to 5 test/control lines per strip |
| Measurement time | <15 seconds for one test strip |
| Stability | Relative drift value ? 3% within 2 hours |
| Printer | Micro-Thermo printer |
| Save type | Built-in SD card (2 GB) |
| Connections | 2 x USB port |
| Operating conditions | 15~40?, humidity: ?80% |
| Input power | AC 100-240V 50/60Hz, DC 12V 2A |
