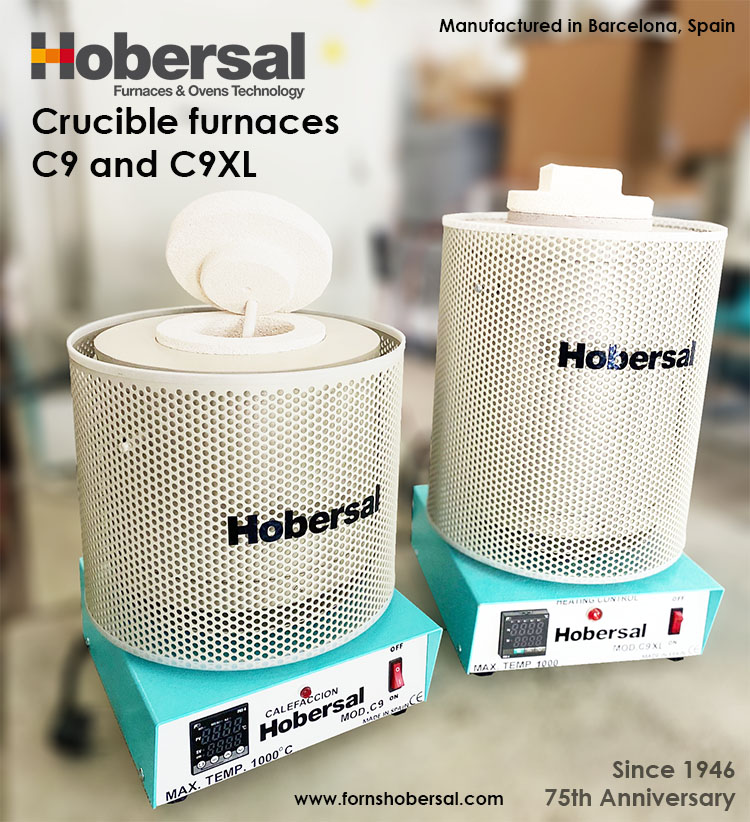

Crucible furnace

Crucible furnace model C9
Calcine, melt, incinerate, evaporate, foundry…)
Temperature 1.000 ºC
Useful zone: Ø 100 H:115mm
Let work 24/7 in continuous mode
Heating elements around the hole
Low thermal mass insulation
Built with low density ceramic bricks and ceramic fiber
Double isolation chamber
Outside casing in metal sheet painted ( inox as optional)
Thermocouple type K
Compact and lightweight furnace
Easy to replace all the spare parts by the end user
Furnace control:
Under the furnace
Solid state relay
PAD Digital control. Microprocessor. Alarm.
Furnace disconnection by thermocouple break
Manufactured under the CE
Accessories
Security class II. Over-temperature protection
Inlet gas entry
Flow meter box
Optional regulation
1 program 8 steps (Programmer)
4 program 15 steps (Programmer)
Data logger and programmer communication by Ethernet/ RS232
