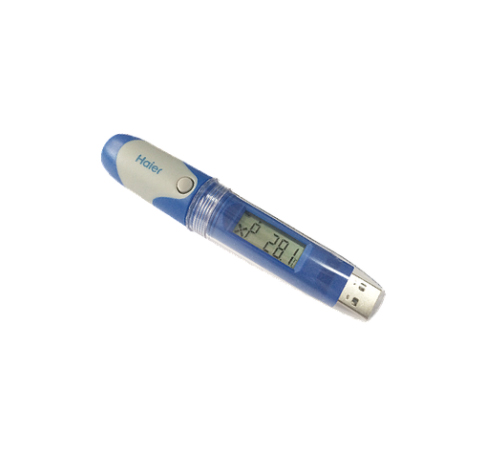

Haier HETL-01 Electronic Temperature Logger

Haier HETL-01 Electronic Temperature Logger

Haier Vaccine Cold Chain Storage Safety Solution

• 30 Day Electronic temperature logger
• Continuous, real-time, whole-process traceable monitoring for vaccine safety storage solution
•  WHO approved and sourced by WHO procurement.

Product Features

• Approved by WHO’s PQS, PQS code:E006/042
• Designed specifically for 2~8°C vaccine storage, equipped with high/low-temperature visual alarm to meet the WHO standard
• Recording capacity is over 30 days, recording interval is 6 minutes, outdated data will be overwritten by a new one automatically when the recording volume is full
• LCD screen displays temperature
• The integrated sensor device, dust and water-resistant to IP65 protection standard, can be placed in Cold Box or vaccine refrigerator to monitor the temperature
• The logger can be plugged into the USB port of any PC to automatically generate a CSV file including temperature data and temperature graph which can be generated by data management software
• Built-in disposable wide temperature range lithium battery (Non-replaceable) with a minimum operating life of two years after a maximum shelf life of one year
• The bracket is included as standard

Technical Specifications

• Operating Temperature: -20°C to +50°C
• Alarm: Visual, Alarm is displayed on the main LCD as a tick if in range and a cross if out of range.
• Display medium: LCD
• User interface: Device itself
• Minimum logging interval: 6 Minutes
• Accuracy: ±0.5°C or better within the range -20°C to +20°C.
• Battery type: Non-replaceable Lithium ion battery
• Battery shelf life: 36 months
• Activated life: 24 months after a maximum shelf life of one year.
• IP rating: IP65
