iCEN-24R high speed centrifuge with 24-place capcity rotors are the new designed for the laboratory centrifuge. Their speed of up to 15,000rpm(21,400×g) allows for molecular biology applications in 0.2ml,0.5ml,1.5/2.0ml and PCR tubes. Both models have the soft-brake funciton to protect sensitive samples.

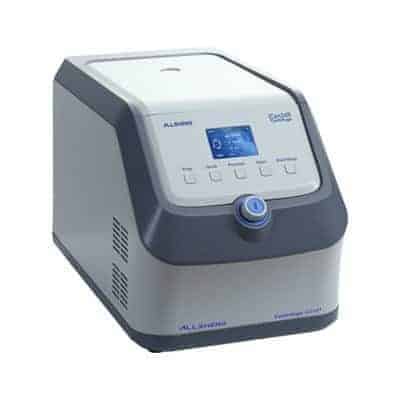

Refrigerated Centrifuge iCEN-24R features state of the cooling function to ensure energy efficiency and high temperature accuracy for maximum sample protection.
Product Features
1. Max. rotor capacity: 24×1.5/2.0ml
2. 3 different rotors are available
3. Max. speed: 14,680 rpm (21,400 × g)
4. Safe and reliable, various safety protections with CE safety standard
5. Soft-brake function to protect sensitive samples
6. Separate short-spin key for quick centrifugation
7. Automatic lid opening at the end of run – prevents sample warming and allows easy access to samples
8. Can be used in cold room
9. Max. rotor capacity: 24×1.5/2.0ml
10. 3 different rotors are availabel
11. Max. speed: 14,680 rpm (21,400 × g)
12. Temperature range from -10°C to +40°C
13. FastTemp for rapid pre-cooling of the centrifuge, less than 15min from 20°C to 4°C
14. Safe and reliable, various safety protections with CE safety standard
15. Soft-brake function to protect sensitive samples
16. Separate short-spin key for quick centrifugation
17. Continuous cooling keeps temperature constant, if no centrifugation takes place and the lid remians closed
Technical Data
| Model | iCEN-24R |
| Speed | 500rpm~15,000rpm(100rpm steps) |
| Acceleration time | 15s |
| Deceleration time | 15s |
| Max.Capacity | 24×1.5/2.0ml |
| Number of Rotors | 3 |
| Max. RCF | 21,400×g |
| Soft braking function | YES |
| Temperature control @ 4°C | ±2°C |
| From 20°C to 4°C | ≤15min |
| Temperature range | -10°C to +40°C |
| Max.Power | 500W |
| Dimensions(W×D×H) | 300×500×320mm |
| Weight with one rotor | 28kg |
| Timer | 1s-99min59s(Short-spin) |
| Power supply | AC100-120V/AC200-240V 50-60Hz |
Accessories
| No. | Code | Description |
| 01 | AS-08120-00 | iCEN-24 High speed centrifuge, AC100-120V/AC200-240V, 50-60Hz |
| 02 | AS-08130-00 | iCEN-24R High speed refrigerated centrifuge,AC100-120V/AC200-240V, 50-60Hz |
| 03 | AS-08121-01 | 24×1.5ml/2.0ml rotor |
| 04 | AS-08121-02 | 4 – 8×0.2ml PCR strip rotor |
| 05 | AS-08121-03 | 12×5ml rotor |
| 06 | AS-08041-01 | Adapters for 0.5 – 0.6ml tubes |
| 07 | AS-08041-02 | Adapters for 0.2ml tubes |
