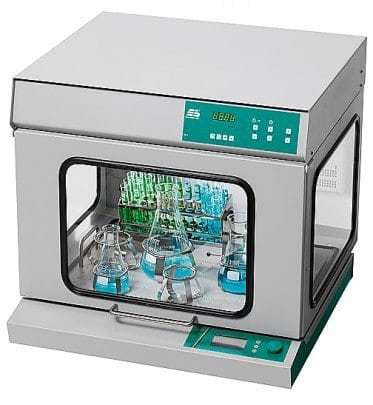

The Incubator Hood TH 30 has a temperature range from +5°C above ambient to +50°C and can be combined with all universal shakers SM 30 or used as independent unit. The height is sufficient for 2000 ml Erlenmeyer flasks. The incubator hood is equipped with a standard light and a UV light. Optionally a cooling device for an external cooling system can be installed.
Basic Equipment
Coated metal housing with 3 windows, the front door opens upwards
Safety cut-off of UV light and stop of the shaker when the front door is opened if combined with a Bühler Universal Shaker.
Standard temperature controller 5°C above ambient to +50°C.
Option
Extended temperature range up to +60°C
Cooling device TH 30
Details
| Temperature range: | 5°C above ambient to +50°C |
| Temperature accuracy: | + / – 1% of the set value |
| Inner dimensions (w x d x h): | 660 x 540 x 430 mm (height sufficient for 2000 ml Erlenmeyer flasks) |
| Lighting: | standard light 15 W / UV light 15 W |
| Accessory: | Shelf TH 30 2-storey top frame SM / TH |
Technical Specifications
| Temperature sensor: | PT 100 |
| Air circulation: | 240 m3/h |
| Electrical supply: | 230 V, 50 / 60 H 115 V version on request |
| Dimensions (w x d x h): | 680 x 610 x 560 mm |
| Weight: | 33 kg |
