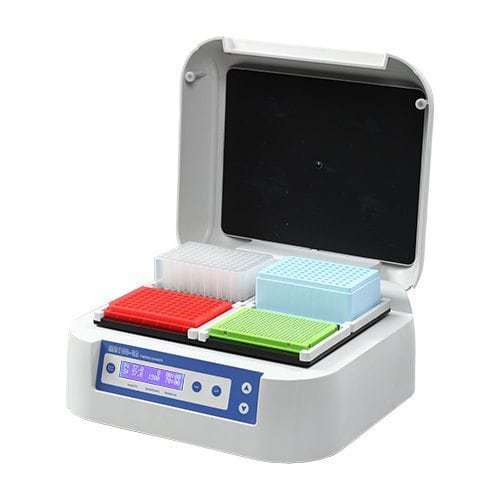

The MB100-4A and MK100-4A are designed for shaking 1-4 standard 96 well plates in the thermostat mode.
The MK100-4A have incubation functions only. The MB100-4A have incubation and shaking functions. A
distinctive feature for the MB100-4A and MK100-4A is two-side heating of microtest plates that allows achieving
exact correspondence of the set and actual temperature in wells of the microtest plates.
The MB100-4A and MK100-4A are designed for shaking 1-4 standard 96 well plates in the thermostat mode.
The MK100-4A units have incubation functions only. The MB100-4A units have incubation and shaking functions. A
distinctive feature for the MB100-4A and MK100-4A is two-side heating of microtest plates that allows achieving
exact correspondence of the set and actual temperature in wells of the microtest plates.
Code Description
AS-03020-00 MB100-4A AC220V or AC120V, 50/60Hz, 300W
AS-01060-00 MK100-4A AC220V or AC120V, 50/60Hz, 200W
1. LCD display. It is easy to set up and use
2. Heating plates above and below the microplates
3. Incubation up to 70°C in 0.1°C steps
4. Shakes and incubates two or four microplates simultaneously
5. Beep-signal and stop of shaking motion after program completion
6. Excellent temperature accuracy and uniformity across the plate
| Model | MB100-4A | MK100-4A |
| Temperature Control Range | RT+5°C~70°C | RT+5°C~70°C |
| Temperature Setting Range | 5°C~70°C | 5°C~70°C |
| Timer | 1min~99h59min | 1min~99h59min |
| Temp. Control Accuracy | ±0.5°C | ±0.5°C |
| Display Accuracy | ±0.1°C | ±0.1°C |
| Shaking Speed | 100~1500rpm | —- |
| Heating Time(20 to 70°C) | ?20min | ?20min |
| Platform Capacity | 4 plates | 4 plates |
| Mixing Orbit | 2mm | —- |
| Dimension(mm) | 320 x 350 x 185 | 320 x 350 x 185 |
| Net Weight | 9kg | 8kg |
