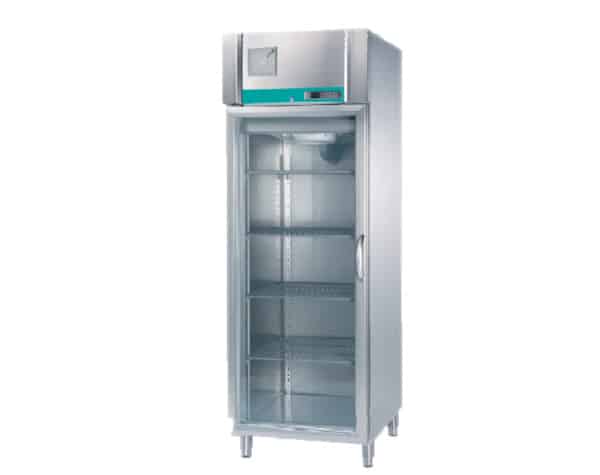

RL-600 LABORATORY REFRIGERATOR 600L

RL-600 LABORATORY REFRIGERATOR 600L

General Characteristics

• Digital temperature controller with display, temperature range from +2ºC to +14ºC.
• High volume FAN in the chamber for forced air-flow cooling circulation.
• Pt 100 probe with 0.1ºC accuracy on the display.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Homogeneity in the chamber of +/- 1.5ºC.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Code protect control panel (supported over 18 hours).
• Forced-air flow system, distributed uniformly upward, with high homogeneity of the temperature inside the chamber.
• Digital temperature controller with display, temperature range from +2ºC to +14ºC.
• High volume FAN in the chamber for forced air-flow cooling circulation.
• Pt 100 probe with 0.1ºC accuracy on the display.
• Audible and visible independent alarms for maximum and minimum temperature, also alarms for probe and power failure; all with battery back-up.
• Solid door with big sized handle (in data chart).
• Alternative possibility of opening door to left or right side (indicate at the order, factory adjustment).
• Security lock door with key.
• On/Off power switch retro-illuminated.
• Evaporator with automatic defrost, probe controlled in stainless steel models.
• Cooling gas R134a, CFC and HCFC free, biodegradable.
• Hermetic compressor, built over dampers low noise <48dB.
• Internal and External chamber according the model (see the data chart).
• Feet for adjusting equipment height.
• Internal shelves made in plastic coated steel wire, adjustable height.
• Magnetic perimeter gasket on the door, to ensure a perfect airtight closing.
• Isolation of 60 mm of high density injected polyurethane, CFC and HCFC free.
• Tropical treatment to allow work until +38ºC working area temperature with 85-90% R.H.
• Consumption: 351W
• Internal dimensions: 580x690x1360mm.
• External dimensions: 700x820x2080mm.
• Power supply: 220V / 50Hz.

Options

• Temperature circular chart recorder 7 days, main powered with independent battery back-up; works even by power failures (increase the equipment external height 200 mm).
• Triple glass door with heated frame, to avoid condensation in high humidity areas (only in stainless steel models).
• Open door alarm with timer.
• Remote control interface with connection RS 485/232.
• Potential free output for remote alarm control.
• Main power switch with security key.
• Stop sound alarm switch with security key.
• Communication Software.
• Data loggers.
• Set of 4 wheels, for easy movement.
• Set of stainless steel drawers with telescopic guides.
• Storage racking systems and dividers for drawers.
• Internal light for solid door models.
• Port holes.
• Internal electrical plug (power supply), for connection of equipments inside the chamber.
• 110V / 60Hz or 220V / 60Hz
