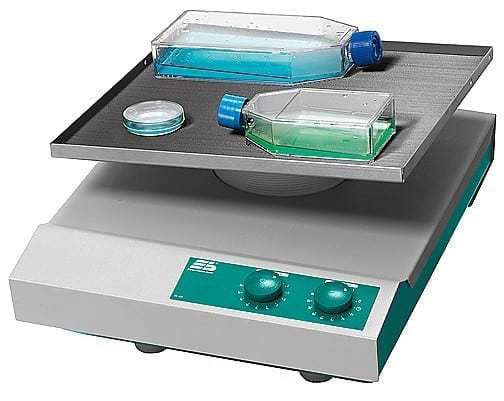

The Three-Dimensional Shaker TL 10 works with slow, three-dimensional motion. The angle of tilt is adjustable between 0° and 9° and the shaking speed between 1 and max. 23 rpm. The shaking platform of 340 x 340 mm can be loaded with max. 10 kg.
Basic Equipment
Basic device incl. basic tray and rubber mat
Details
| Motion: | three-dimensional orbital motion |
| Shaking platform: | 340 x 340 mm |
| Max. load: | 10 kg |
| Shaking speed: | 1 – 23 rpm, steplessly adjustable |
| Angle of tilt: | 0° to 9° einstellbar |
| Timer: | 0 – 120 min / continuous |
| Accessory: | Multi-storey rack system WS / TL |
Technical Specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx 7 – 10 W |
| Ambient temperature:: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 355 x 450 x 205 mm |
| Weight: | 18,5 kg |
