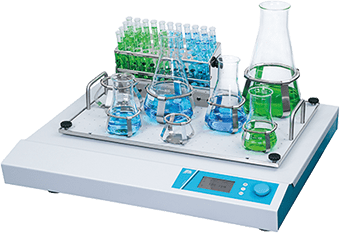

The shaking motion of the laboratory shaker SM 30 C control can be switched from orbital to horizontal. This guarantees flexibility for different applications with one device. The universal shaker is ideally suited for high loads up to 30 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.
Basic Equipment
Basic device with shaking plate and rubber mat, without rack system
With digital display and programmable control
Loading Capacity
Erlenmeyer flasks 100 ml 42 pieces
Erlenmeyer flasks 250 ml 20 pieces
Separating funnels 250 ml 6 pieces
Separating funnels 1000 ml 2 pieces
Test tube racks 4 pieces
Option:
Control interface
USB interface
Details
| Motion: | can be switched from orbital to reciprocating |
| Shaking platform: | 560 x 400 mm |
| Max. load: | 30 kg |
| Shaking speed: | 15 – 300 rpm, in steps of 5 |
| Stroke: | 26 mm |
| Runtime: | programmable / continuous |
| Accessory: | Rack System Combifix SM A Rack System Combifix SM B Rack System Combifix SM C Universal tray SM 2-storey top frame SM Incubator Hood TH 30 |
Technical Specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 Hz please indicate in case of order |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 20 – 30 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 680 x 610 x 160 mm |
| Weight: | 33 kg |
