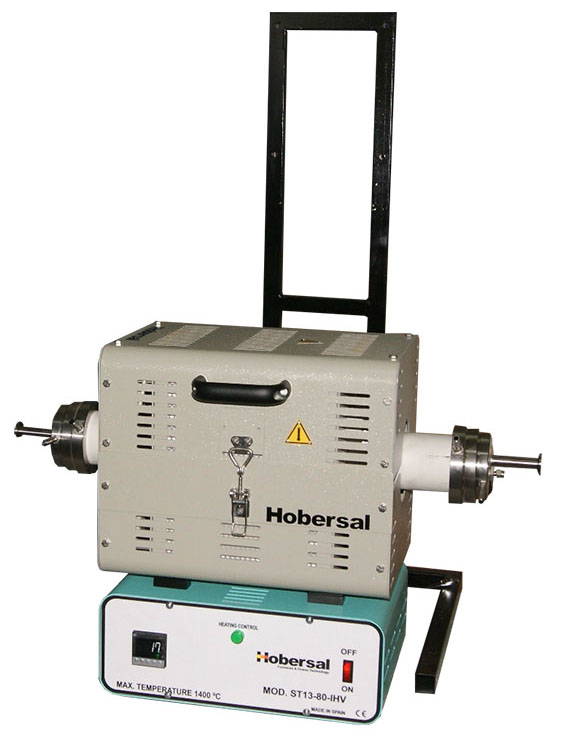

HTF SC Tube furnace (High Temperature)

HTF SC series Split tube Furnace
High Temperatura tube furnaces up to 1600ºC
Vertical Operation available
Temperatures 1.100 ºC – 1300ºC
Custom sizes: heating length and tube diameter
Oxidant atmosphere, controlled atmosphere or vacuum
Split and horizontal works
1, 2, 3, or 4 independent zones
Let work 24/7 in continuous mode
Heating elements SiC Kanthal (Silicon Carbide)
Low thermal mass insulation
Built with low density ceramic bricks and ceramic fiber
Double isolation chamber
Outside casing in metal sheet painted ( inox as optional)
Thermocouple type S
Compact and lightweight furnace
Easy to replace all the spare parts by the end user
Furnace control:
Under the furnace
Solid state relay
PAD Digital control. Microprocessor. Alarm.
Furnace disconnection by thermocouple break
Manufactured under the CE
Accessories
End seals refrigerated by water
Thermocouple entry
Inlet gas entry
Vacuum pump Leybold ( x10-2 and x10-5)
Security class II. Over-temperature protection
Flow meter box
Silicon joints
Ceramic, Pythagoras, alumina tubes
Crucibles
Regulation (Control)
Ramp programmer up to 64 steps
Eurotherm EPC Series + Data logger Itools sofware by Ethernet
Eurotherm Nanodac Series +Data logger and Itools sofware by Ethernet according AMS2750E and 21CFR Part 11
Metal sintering, ceramic sintering, brazing, calcination, soldering, pyrolysis, hardening, ageing, catalyst research, drying, testing, solar energy, synthesis, photovoltaic…
