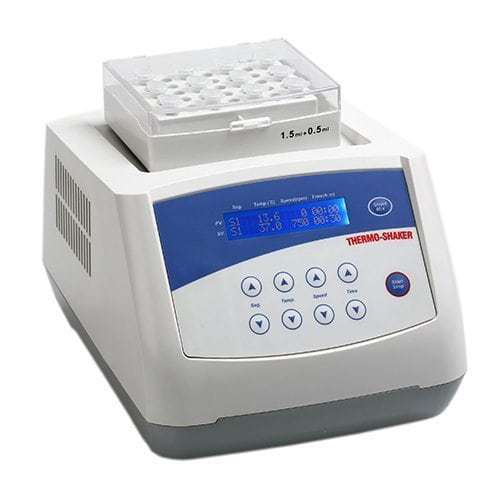

Designed for simultaneous heating, cooling and mixing of small samples, MS-100 and
MSC-100 can be supplied with interchangeable blocks for microtubes. Mixing, heating
and cooling modes can be used either simultaneously or independently. The main body
of the Mixing Block can be used with different kinds of blocks
Designed for simultaneous heating, cooling and mixing of small samples, MS-100 and
MSC-100 can be supplied with interchangeable blocks for microtubes. Mixing, heating
and cooling modes can be used either simultaneously or independently. The main body
of the Mixing Block can be used with different kinds of blocks
Code Description
AS-02010-00 MS-100 AC220V or AC120V, 50/60Hz, 150W
AS-02020-00 MSC-100 AC220V or AC120V, 50/60Hz, 250W
1. LCD display. It is easy to set up and use
2. Accurately control and display time, temperature and speed
3. Over-heating protection device ensures safety & reliability
4. Low noise working even under the speed of 1,500rpm
5. Conforms to CE safety standard
6. Peltier design of MSC-100 provides thermal control in a compact unit
| Model | MS-100 | MSC-100 |
| Temperature Control Range | RT+5°C~100°C |
0°C~100°C if Ambient temp.?20°C
4°C~100°C if Ambient temp.?25°C
10°C~100°C if Ambient temp.?30°C
|
| Temperature Setting Range | 5°C~100°C | 0°C~100°C |
| Timer | 1min~99h59min | 1min~99h59min |
| Temp. Control Accuracy | ±0.5°C | ±0.5°C |
| Display Accuracy | ±0.1°C | ±0.1°C |
| Mixing Speed | 200~1500rpm | 200~1500rpm |
| Heating Time(25 to 100°C) | ?12min | ?15min |
| Cooling Time | —- |
?30min (from RT. to RT.-20°C)
?15min (from 100°C to 20°C)
|
| Mixing Orbit | 2mm | 2mm |
| Dimension(mm) | 300 x 220 x 175 | 300 x 220 x 175 |
| Net Weight | 7kg | 8.5kg |
| Code | Description |
| AS-02010-00 | MS-100 AC220V or AC120V, 50/60Hz, 150W |
| AS-02020-00 | MSC-100 AC220V or AC120V, 50/60Hz, 250W |
