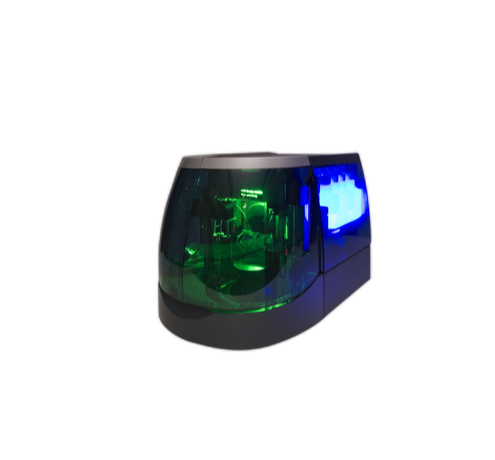

MINICAP FLEX PIERCING
THE SEBIA CAPILLARY ELECTROPHORESIS AUTOMATED SOLUTION FOR SMALL TO MEDIUM SIZE LABORATORIES
The MINICAP FLEX PIERCING instrument offers flexibility for small to medium size laboratories. The fully automated instrument meets the needs of the laboratory while providing clear-cut and precise separations utilizing the capillary electrophoresis technology. This multi-parameter instrument offers a comprehensive menu on serum and whole blood for Protein, Immunotyping, HbA1c, Hemoglobin and CDT (Carbohydrate Deficient Transferrin) testing.
For whole blood testing, the capped tubes are gently inverted to ensure adequate mixing of the samples providing accurate results. The instrument provides complete walk-away automation reducing overall labor requirements.
TEST MENU
- PROTEIN(E) 6
- IMMUNOTYPING 6
- CDT
- Hb A1c
- HEMOGLOBIN(E)
TECHNICAL CHARACTERISTICS
Autonomy
- Continuous sample loading
- Tube capacity
- Proteins: 28 samples
- HbA1c, Hb or CDT: 26 samples
Throughput
- Proteins: 20 tests/h
- HbA1c or Hb: 7 tests/h
- CDT: 10 tests/h
Sample types
- Serum
- Whole blood (capped tubes)
Positive ID & Reagents Traceability
- Barcoded carousel and tubes
- High resolution built-in barcode reader
- Positive sample identification
- Full traceability from primary tube to final result
- Barcoded reagents and controls
Sampling mode
- Full automation with continuous loading
- Direct sampling from primary tubes
- Sampling from open and capped tubes (cap piercing)
- Efficient mixing system with multiple sample inversions
Capillaries
- 2 silica capillaries for 2 simultaneous migrations
- Migrations performed in capillaries at accurate temperature controlled by a Sebia proprietary Peltier based regulation device
MINICAP FLEX PIERCING
- Software: operated by Phoresis CORE
- Weight:
- 66 lb
- 30 kg
- Dimension:
- (L) 17 x (W) 22 x (H) 16 in
- (L) 43 x (W) 57 x (H) 41 cm
- Catalog number: PN 1232
- Related accessories not provided with instruments:
- Screen, PC, UPS and printer
