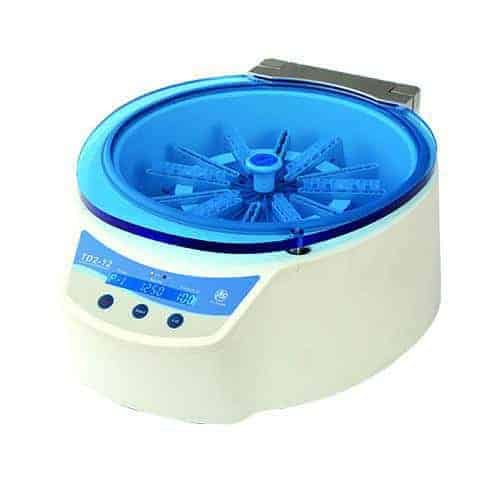

TD2-12 Centrifuge
Capacity: 12 Gel Cards
Speed Range: 800~1800rpm
Centrifugal Force:54~272g
Timer:1~20min
The TD2-12 ID-Centrifuge holds automatic balance control and user can set speed and centrifugation time. It can be suitable many types ID-CARDS from different manufacturers.
1. Capacity: 12 Gel cards
2. Speed: Two stages (It can be vairable according to user need)
3. Max Speed: 1800rpm
4. Centrifugal Force: 54~272g
4. Timer: 1~20min
5. Power: AC100-240V, 50/60Hz, 85W
6. Dimensions: DxWxH=440x340x170 mm
7. Weight: 7.0kg
Code Description
AS-10030-00 TD2-12 AC100V~240V 50~60Hz 3A
1. Silent centrifuge for up to12 ID-cards.
2. Removable and exchangeable spinning head
3. Automatic balance control
4. Pre-defined centrifugal parameters for optimum Cards processing; acceleration, speed, braking and time
5. Digital interface visor control and visualization of centrifuge speed and time remaining for processing
6. Programmable audible alarms for end of centrifuge time periods
| Model | TD2-12 |
| Capacity | 12 Gel Cards |
| Speed Range | 800~1800rpm |
| Centrifugal Force | 54~272g |
| Timer | 1~20min |
| Power | AC100~240V, 85W |
| Dimensions (DxWxH) | 440 x 340 x 170mm |
| Net Weight | 7kg |
