Programmable Temperature and Humidifying Controlled Slide FISH or ISH Hybridization System
1. TDH-500 Hybridization System provides an easy, safe, system for in-situ hybridization procedures. The programmable, open system automates the denaturation and hybridization steps in slide-based FISH procedures.
2. TDH-500 is easy to use and reduces hands-on time by more than 50% while ensuring overall precision and accuracy in all slide-based assays.

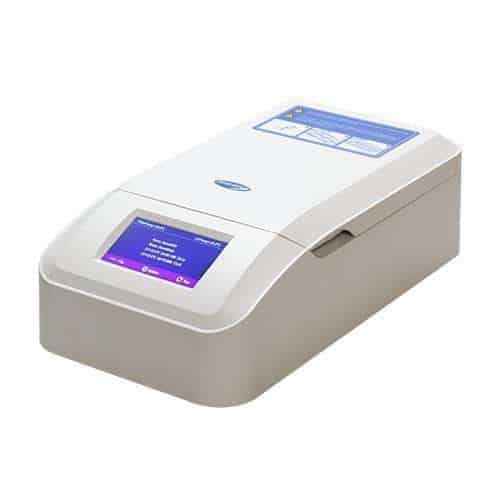

TDH-500 Hybridization System
Programmable system and humidifying that automates the steps in a slide-based FISH procedure, and provides

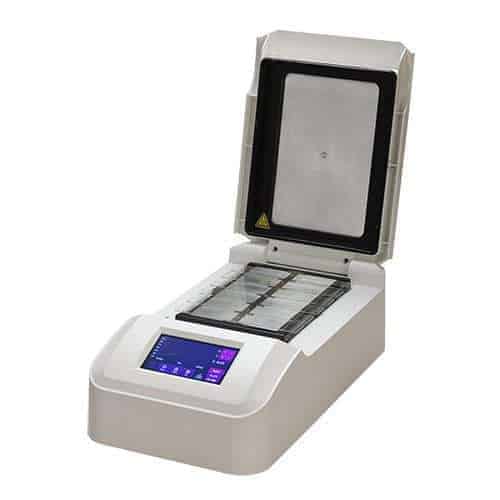

walk-away convenience for clinical and research personnel. Up to 12 slides can be easily be added or removed
with one hand. Two-side heating of slides thatallows achieving exact correspondence of the set and actual
temperature and maintaining uniform temperature across all slide positions.
1. Touch screen diaplay, easy programmable setting
2. Possibility to expert cycles data
3. Perfect hummidity control system
Code Description
AS-05010-00 TDH-500 AC120V, 50/60Hz, 3A or AC220C, 50/60Hz, 2A
1. Touch screen allows for easy to read, program and use
2. it can run In-situ PCR experiments
3. Possibility to export cycles data via USB memory
4. Four operation modes: denaturation / hybridization, hybridization fixed temperature, custom, In-situ PCR
5. Can be used as a fixed temperature slide warmer
6. Rapid temperature warmp-up and accuracy of ±1°C
7. Superior temperature uniformity accross all slide positions
8. Perfect humidity control system
| MODEL | TDH-500 |
| Temperature Control Range | RT+5°C~99.9°C |
| Temperature Accuracy | ±1°C |
| Temperature Uniformity | ±1°C |
| Processing Timer | 1min~99h59min or 1sec~99min59sec |
| Temp. Display Accuracy | ±0.1°C |
| Heating Time ( 37°C to 95°C ) | ?3min |
| Cooling Time(95°C to 45°C) | ?7min |
| Temperature Control Programmable | 30°C ~100°C |
| Capacity | 12 Slides |
| Overall Dimensions (L x W x H) | 420?225?143mm |
| Weight | 5.8kg |
